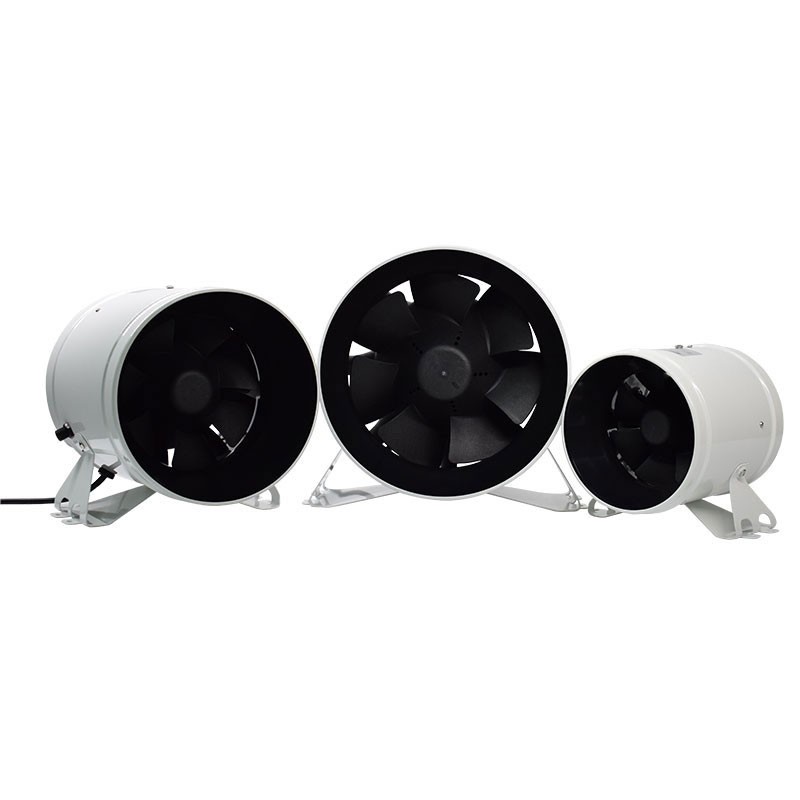

Bullfan - Air extractor V2 - 250mm - 1808m³/h - Inline EC Fan

Extractor Bullfan with special controller connection

The BULLFAN Inline EC Fan features a system with easy duct connections on both sides. The fan is built with a cold-rolled steel casing and turbines of jet-engine design. It is equipped with the state-of-the-art brushless EC motor.

Thanks to its modern design, it can operate withmuch lower energy consumption, deliver a greater air volume and higher static pressure than an AC motor.

Take control of your air system with the special controller connection.
Allows you to manage temperature and 4 fans.

Bullgenius controller

information :

• Specific connection for controller
• Easier duct connection with detachable bracket.
• UL94V-0 blade fire-resistance rating. V-0: combustion ceases within 10 seconds on a vertical sample; particulate drops allowed as long as they are not ignited.
• Detachable speed variator 0% -100% (potentiometer) included / switch (optional).
• Heavy-duty double ball bearing NMB.
• Motor interlock protection (AUTOMATIC RESTART): soft-start motor, customized interlock protection function, overvoltage protection: pulse-width modulation (PWM) / 0-10 V control / voltage output / tachogenerator output.
• IP68 tightness level, the maximum available.



Technical specifications :

• Fan size: 250 mm
• Rated voltage: 110V~120V | 220~240V
• Max. power C: 150W
• Frequency: 50 Hz - 60 Hz
• Max. speed: 3200RPM
• Max air flow: 1065 CFM - 1808 m³/H
• Static pressure: 53 mm H²O - 510 Pa
• Noise level : 55 dBA
• Motor type : EC motor
• Net weight: 3 kg
• IP rating: IPX4
