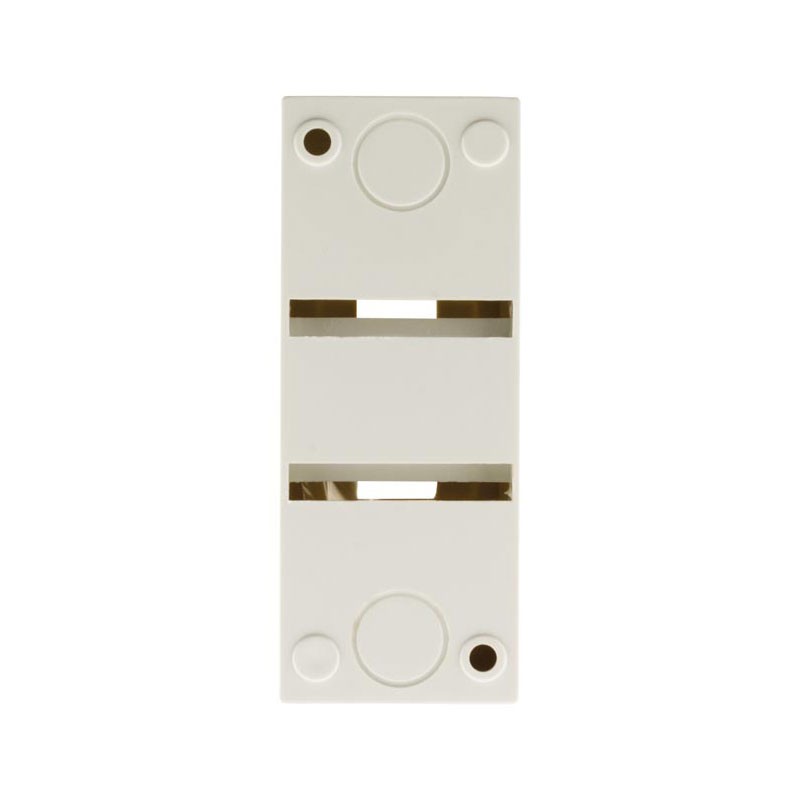

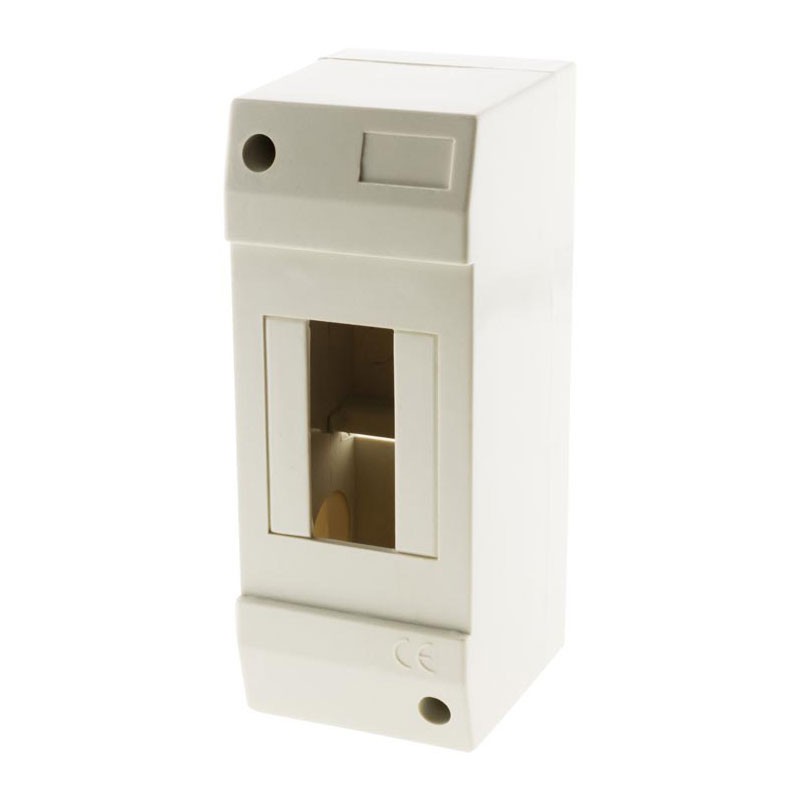

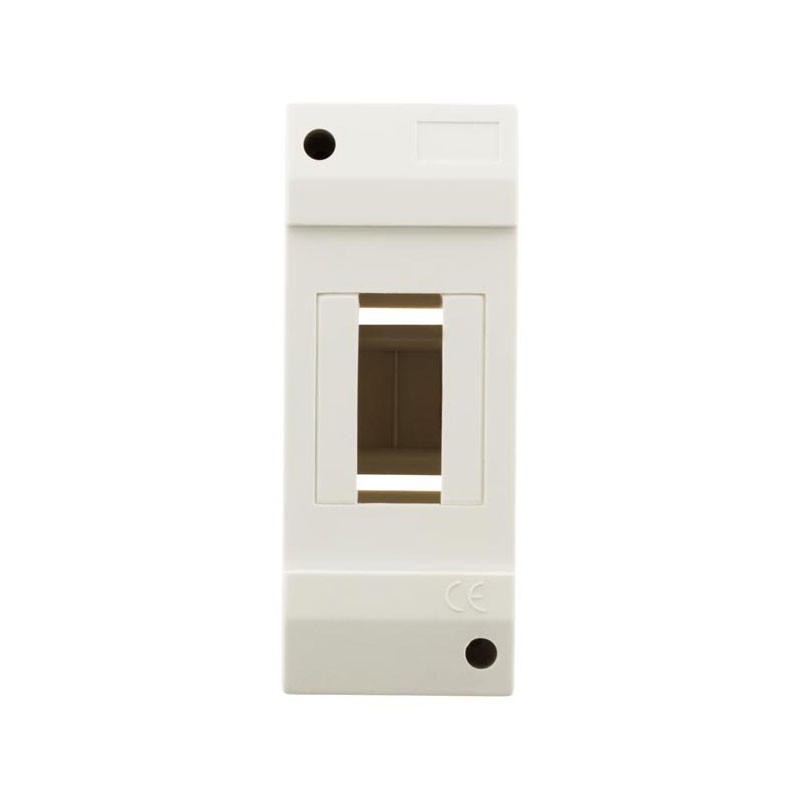

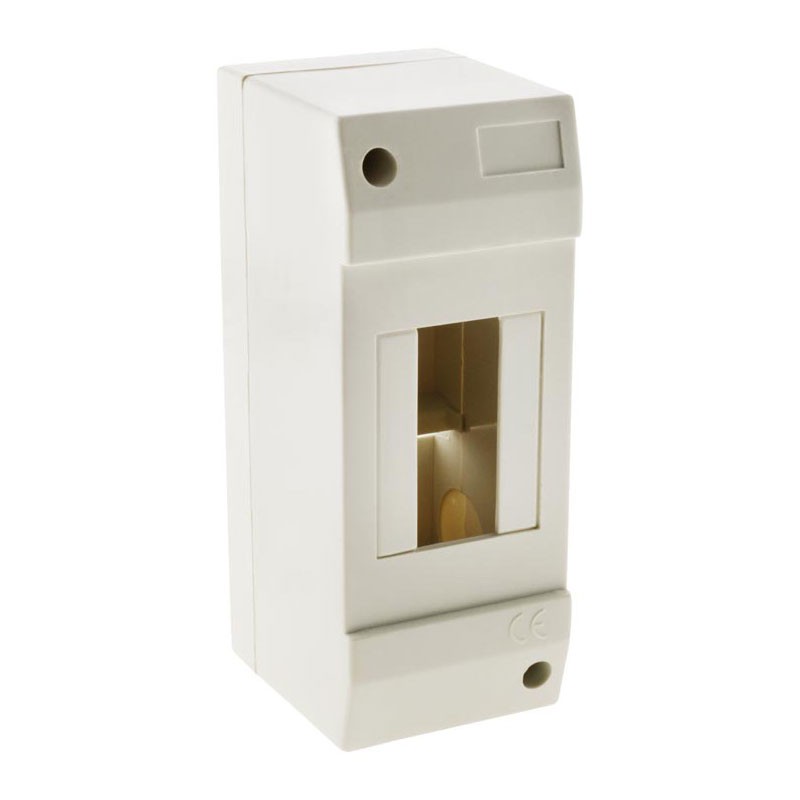

Electric box without door for 2 modules Zenitech
| -20% | €1.20 |
| -15% | €1.28 |
| -10% | €1.35 |
| -7.5% | €1.39 |
| -5% | €1.43 |
Allows an assembly of 2 modules.
- Without door
- Brand Zenitech
Reminder of the standard - amendment 5 NF C 15-100
| Examples of circuits to protect | - Controlled mechanical ventilation (CMV) - Room thermostat - Modular bell or chime - Day/night contactor for water heater - Intercom / video door | - Lighting - Heater / convector - Towel dryer | - Lighting (8 max.) - 2P+T socket (8 max.) - Roller shutter - Heating / convector - Garage door | - 2P+T socket (12 max.) - Electric water heater - Oven - Freezer / refrigerator - Dishwasher - Washing machine (type A only) | - Hotplate (type A only) | ||
|---|---|---|---|---|---|---|---|
| Maximum circuit breaker rating | 2A | 10A | 16A | 20A | 32A | ||
| Wire section | ø1.5mm² | ø1.5mm², ø2.5mm | ø2.5mm², ø6mm² | ø6mm2 | |||
| Number of circuit breakers per line | 8 max. | ||||||
| Earth leakage switch at the head of the line | Type AC or A | Type A only | |||||
| Choice of the size of the differential switches (2 calculation methods) |
|
B. Downstream Rule RCD rating ≥ 1x Sum of circuit breaker ratings for water heater and direct heat + 1/2 x Sum of circuit breaker ratings for other circuits |
|||||
