The Delta-1 TrolMaster is a frequency inverter designed to regulate the speed of three-phase motors, offering predictive control of the motor's speed cis of fans. It integrates perfectly with the Hydro - X Pro system for optimum equipment management.
Delivery delay : 10 day(s)
| -20% | €639.36 |
| -15% | €679.32 |
| -10% | €719.28 |
| -7.5% | €739.26 |
| -5% | €759.24 |
The Delta-1 is a variable frequency drive (VFD) designed to adjust the speed of three-phase AC motors. Compatible with TrolMaster's VFD-1 module, it integrates perfectly into the TrolMaster system Hydro - X Pro system for pre cis of industrial fans and other equipment.
A ready-to-use drive with preconfigured settings
This specially adapted version of the Delta-1 has all the necessary parameters pre-installed for immediate use with the VFD-1. Installation is simplified thanks to the included RJ45 cable, enabling fast and secure connection.
The Delta-1 is designed exclusively for three-phase motors. Like the VFD-1, it cannot be used with single-phase motors. Please check the compatibility of your installation before installation.
Power supply
Normal duty: 3PH 380-480V 50/60Hz 11.6A
Heavy duty: 3PH 380-480V 50/60Hz 9.9A
Output
Power rating: ND (HD) 5HP (5HP)
Normal duty: 3PH 0-460V 10.5A 8.0KVA 3.7KW
Heavy duty: 3PH 0-460V 9A 6.9KVA 3.7KW
Frequency range
0-599 Hz
Protection class
IP20 / UL Type open : -20 °C to 50 °C
NEMA 1 / UL Type 1 : -20 °C to 40 °C (with junction box kit)

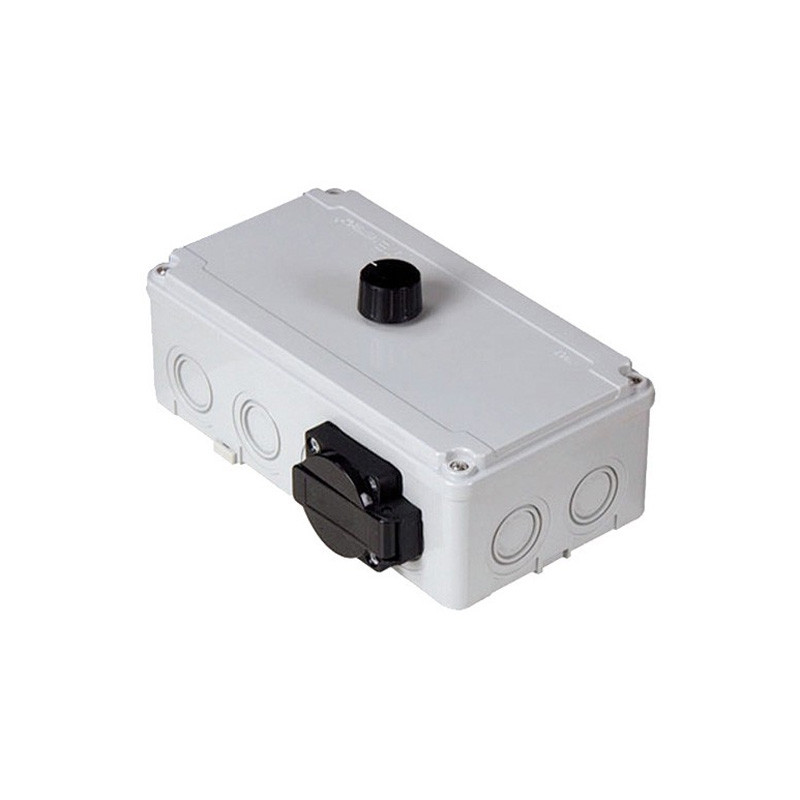

![DAVIN - Speed controller 6A DV11 for air extractor [refurbished] : Zen Cart!, The Art of E-commerce](https://static1.preprod-dav.cultureindoor.com/52545/davin-speed-controller-6a-dv11-for-air-extractor-refurbished-zen-cart-the-art-of-e-commerce.jpg)
