The brand's electronic/digital ballast Calitek 1000W has a high power factor, high luminous efficacy and low THD(Total Harmonic Distortion)
| -20% | €138.72 |
| -15% | €147.39 |
| -10% | €156.06 |
| -7.5% | €160.40 |
| -5% | €164.73 |

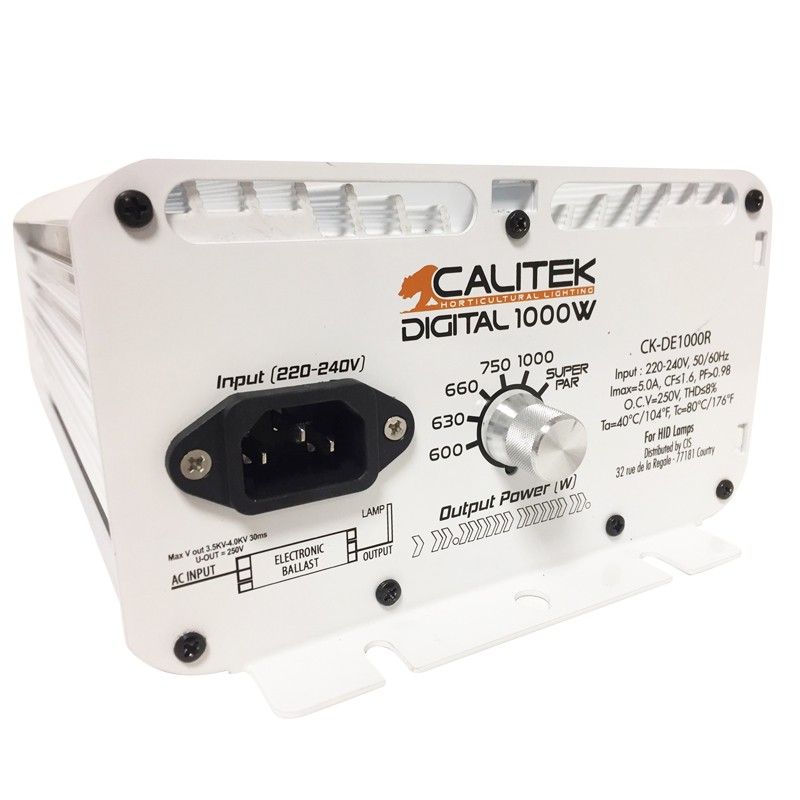

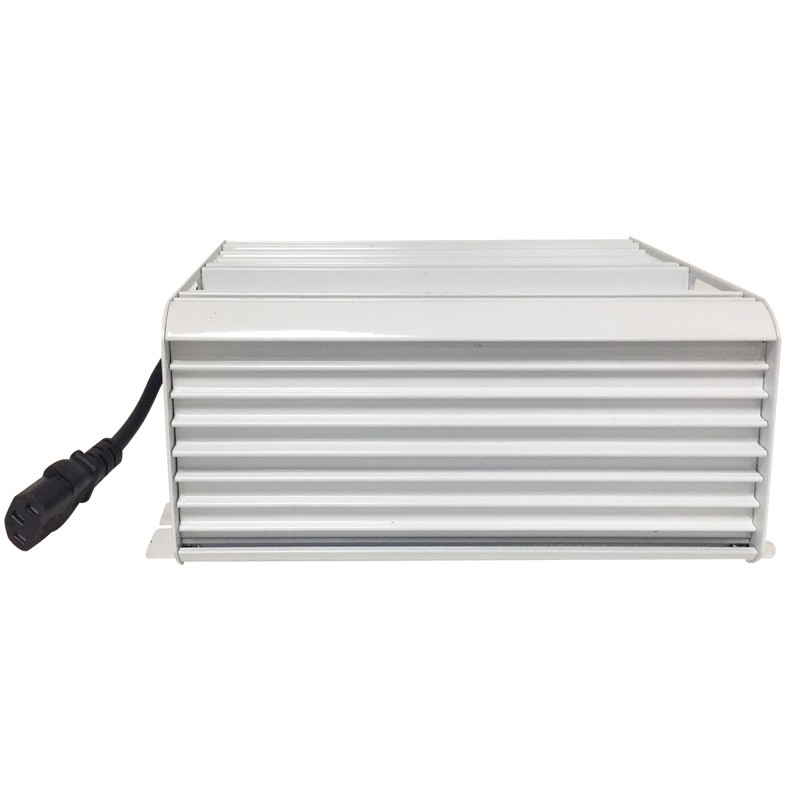

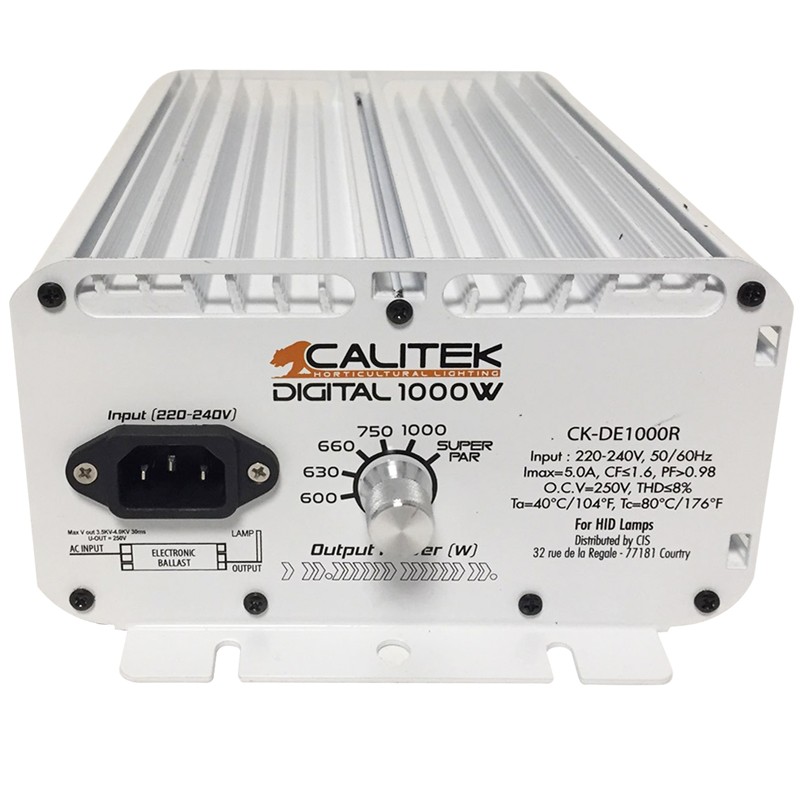

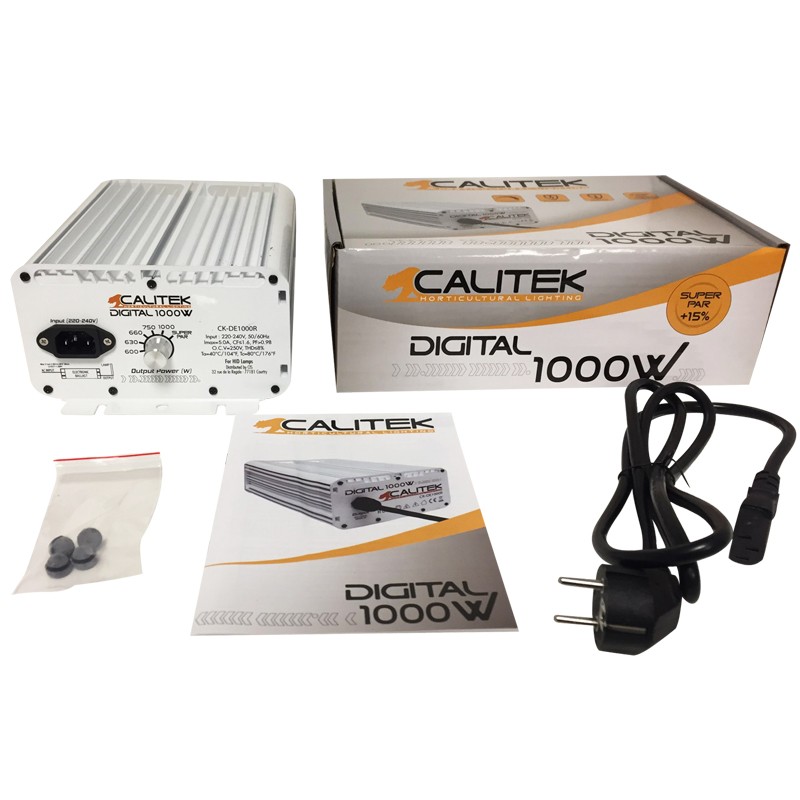

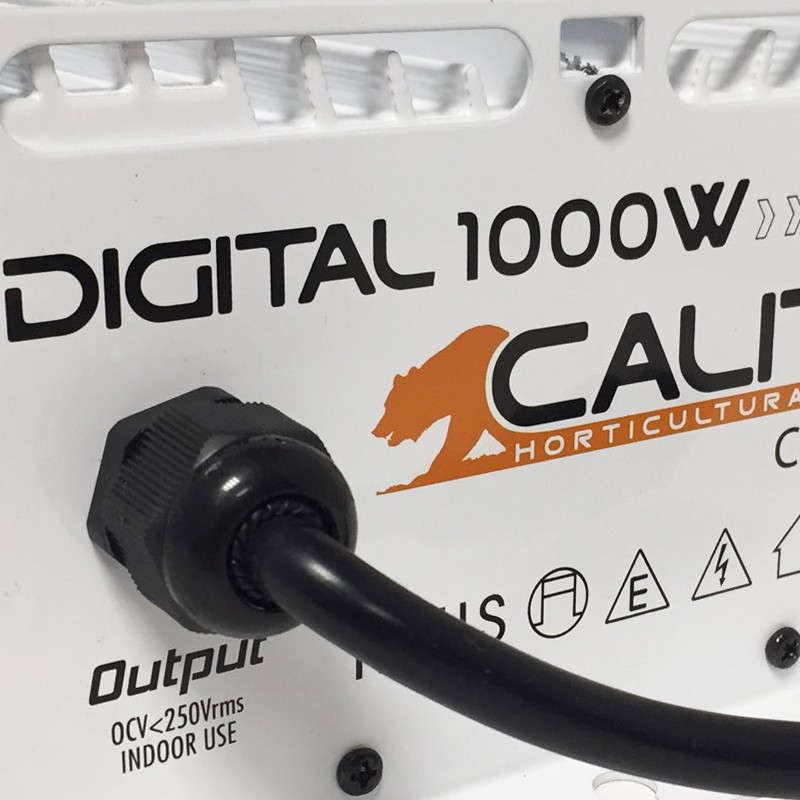

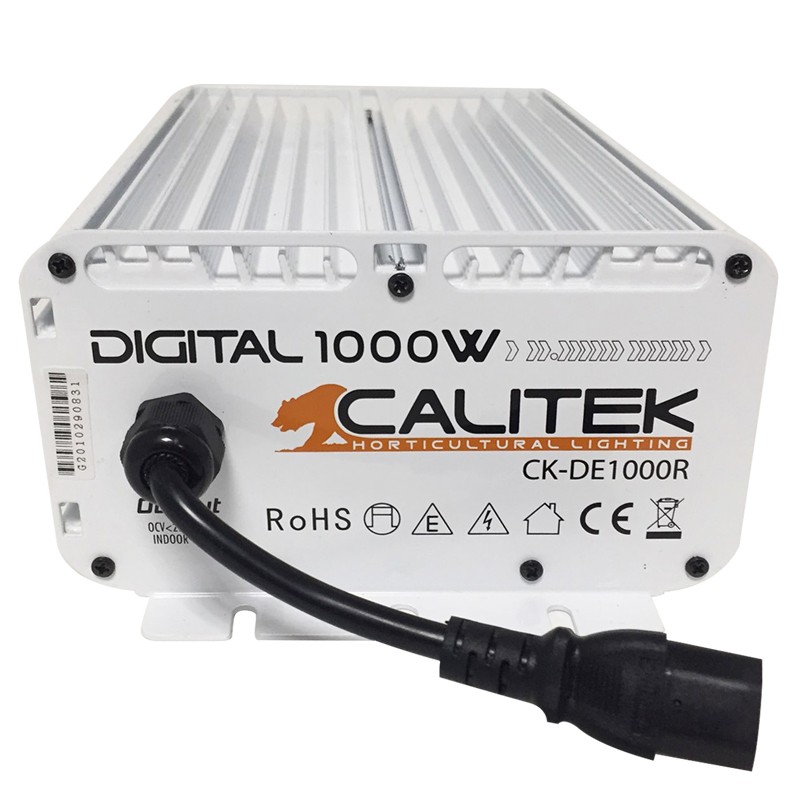

1000W electronic / digital ballast from Calitekthe MH-HPS-CMH-DE electronic ballast for horticultural lamps has a high power factor, high luminous efficacy and low THD(Total Harmonic Distortion), not to mention excellent energy savings.
Equipped with ignition failure protection, open circuit protection and end-of-lamp-life protection technology, this ballast Calitek will not be short-circuited.
It is compatible with CMH (Ceramic Metal Halide), MH (Metal Halide) and HPS (High Pressure Sodium) bulbs, and its high operating frequency (100KHZ - 160KHZ) gives the lamp constant power, while extending its life and increasing its luminous efficacy.
This ballast is capable of operating within a power supply range of 175 to 265V.
Make sure that lamp wattage and voltage match ballast specifications.
For added safety, be sure to read the instructions supplied with the product or downloadable from this page.
Important : Make sure lamp wattage and voltage match the specifications of the digital electronic ballast.
For maximum performance, the installed lamp voltage should be between 200V and 300V.
1000W Ballast specifications Calitek :
| Model | Digital 1000W | |
| Lamps | CMH: 630 and 1000W / HPS DE: 750 and 1000W / MH DE: 1000W | |
| Input power | 1150W | |
| Input voltage range | 175-265V | |
| Input voltage | 220-240V | |
| Input current | 5.0A | |
| Input frequency | 50/60Hz | |
| Max. power output | 1100W | |
| Output frequency | 100KHZ | |

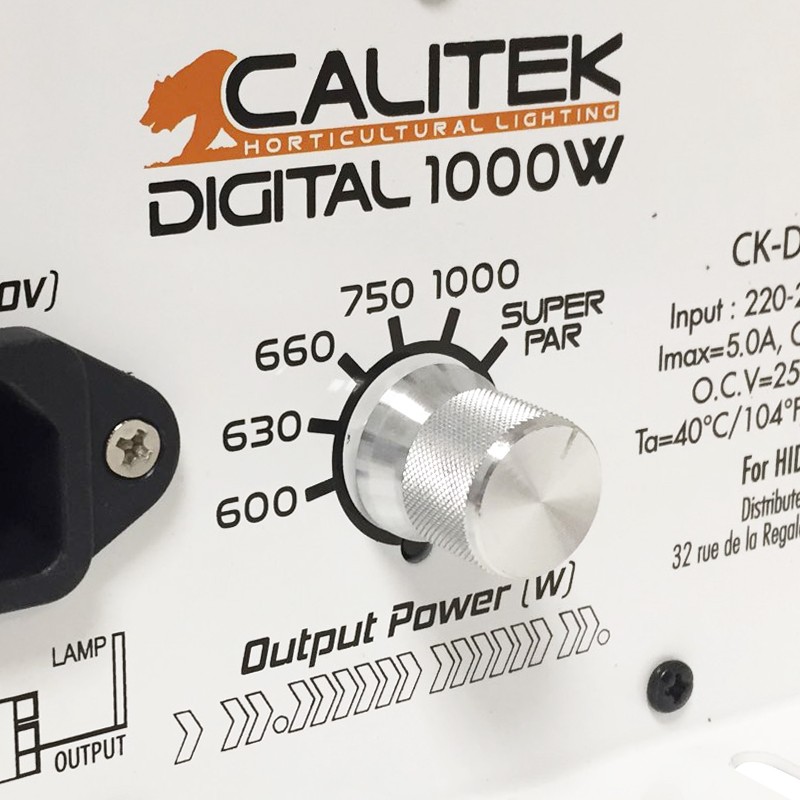

| Inverter operation | 600W-630W-660W-750W-1000W - Super PAR | |
| Leakage current | 2.35mA | |
| Total harmonic distortion | <8% | |
| CF Lamp / crest factor | <1.6 | |
| Power factor | >0.98 | |
| Open circuit voltage | 250Vrms | |
| Operating frequency | 100KHZ - 160KHZ | |
| Ignition voltage | 3.5KV-4KV | |
| Ignition time | 30MS | |
| Inrush current | 6.5A | |
| Current protection | 8A | |
| Insulation resistance | 5MΩ | |
| Insulation voltage | 3.5KV | |
| Fault detection | yes | |
| Lamp power | Constant | |
|
Lamp flicker - acoustic resonance |
No | |
| RF interference | No | |
| Max. case temperature | 80°C | |
| Ambient temperature | -25 to 40°C | |
| Operating humidity | 20%-95% | |
| IP environment requirement | IP23 |
A double-ended bulb, or DE (Double Ended) bulb, is a type of horticultural lamp designed with two connections at the ends, unlike conventional single-ended bulbs. This special design ensures greater arc stability, higher luminous efficacy and longer lamp life. DE bulbs generally emit a more intense and uniform light, making them a preferred choice for professional growers or large-scale cultivation. However, they require special equipment to operate properly.
Important: this ballast Calitek is designed exclusively for double-ended bulbs (MH-DE, HPS-DE, CMH-DE). It is not compatible with single-ended bulbs. Always use a suitable DE bulb to ensure the safety of your installation and the optimum performance of your horticultural lighting.
