ThinkGrow LED - Grow lamp - 630W - Model-H

Horticultural lamp LED ThinkGrow Model-H 630W - High-performance indoor grower

The ThinkGrow Model-H is a lamp LED 630W professional grow light specially designed for high light intensity growing practices (HILP), particularly in hydroponic farms. Its adjustable spectrum covers all phases of plant development, from growth to flowering, and is compatible with the following controllers Hydro-X controllers for advanced remote management via smartphone.

Thanks to its spectrum adjustment technology, its performance of 1700 µmol/s and its efficiency of 2.7 µmol/J, the ThinkGrow Model-H guarantees abundant harvests with controlled energy consumption.

Key features

• Exceptional efficiency: 2.7 µmol/J
• Plug & Play: easy installation without tools

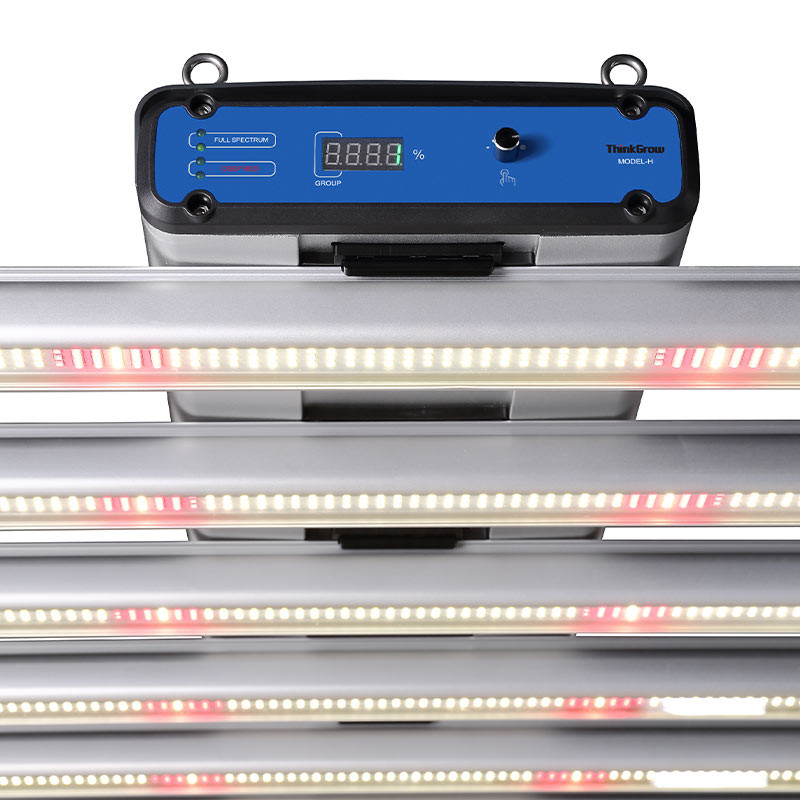

• Integrated dimming: manual dimming wheel
• Adjustable spectrum: from vegetative phase to flowering
• External control via Hydro-X and LMA-T (up to 256 lamps)
• Grouping of luminaires by line (up to 10 groups)

Technical specifications

• PPF: 1700 µmol/s
• Efficiency: 2.7 µmol/J
• Input power: Max 630W
• Power factor: ≥ 90%
• Dimensions: 114.3 cm (L) x 113.3 cm (W) x 11.3 cm (H)
• Weight: 17.6 kg (38.8 lbs)
• Suspension height: > 15.2 cm above canopy
• Service life: L90 > 54,000 hours
• Warranty: 5 years
• Input voltage: 100-277V (autosensing)

Compatibility & advanced features

• Compatible with controllers Hydro- X controllers (TrolMaster)
• Requires LMA-T adapter for separate spectrum and deep-red adjustment
• Smartphone control possible
• Daisy chain: up to 256 luminaires per channel
• Control of independent groups (up to 10)

Frequently asked questions (FAQ)

Is it easy to switch between growth and blooming spectrums?

• Yes, thanks to the Spectrum Tuning function, it's possible to adjust wavelengths via the built-in knob or remotely via a controller.

Is it compatible with all controllers?

• ThinkGrow Model-H is natively compatible with the following controllers Hydro- X controllers. An LMA-T adapter is required to enable full-spectrum control.

Can I control several lamps with a single controller?

• Yes, a single LMA-T can manage up to 256 luminaires on the same daisy-chained line. It is also possible to create up to 10 independent groups with the HCS-2 controller.

Is it suitable for vertical farming?

• Absolutely. Its compact design and high PPFD performance make the Model-H a benchmark for vertical farming in controlled environments.

Recommended accessories (sold separately)

• Controller Hydro-X (TrolMaster) - Manage lighting, climate and irrigation from a single centralized system. Compatible with ThinkGrow Model-H via LMA-T adapter.
• LMA-T adapter - Allows independent control of light spectrum and intensity via the controller Hydro-X. Essential for management of deep red (660 nm).
• TrolMaster App - Mobile application for remote management of your entire connected installation.
• Reinforced suspension kit - For secure mounting in vertical culture or on mobile rails.
• Series connection cables - For daisy-chaining several ThinkGrow luminaires.
