Ubbink
Reference : 215-630-013

Ubbink - Azura pool 400x750cm - beige liner

The Azura 400x750x130cm pool will easily accommodate your family or friends on hot summer days.

> Détails du produit
Ubbink - Azura pool 400x750cm - beige liner
€5,224.05 (tax incl.)
€5,499.00
Free delivery from €89.00 of purchases in France métropolitaine*

Delivery delay : 4 week(s)

Not included in immediate discounts and loyalty
> Voir le détail

Frequently bought together

Product details

Discover the robustness and elegance of pools Ubbink :

The manufacturer's pools Ubbink are offered at a very attractive price while maintaining an impeccable quality!

With a size of 400x750 for a height of 130cm, it will easily accommodate your friends and family during the hot summer days.

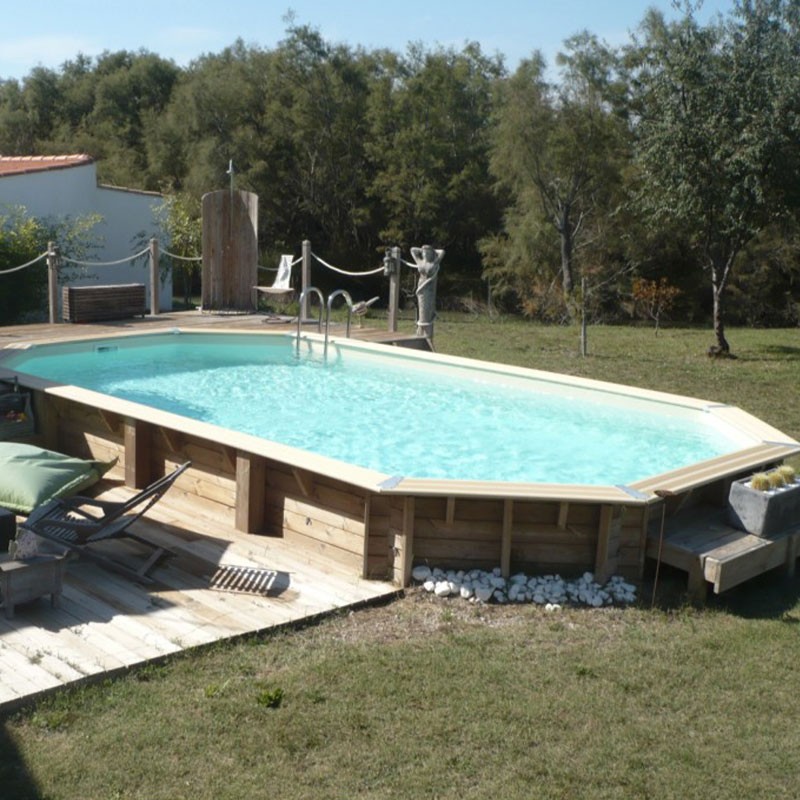

The pools Ubbink can be placed on a concrete slab, totally above ground, semi-buried or buried.

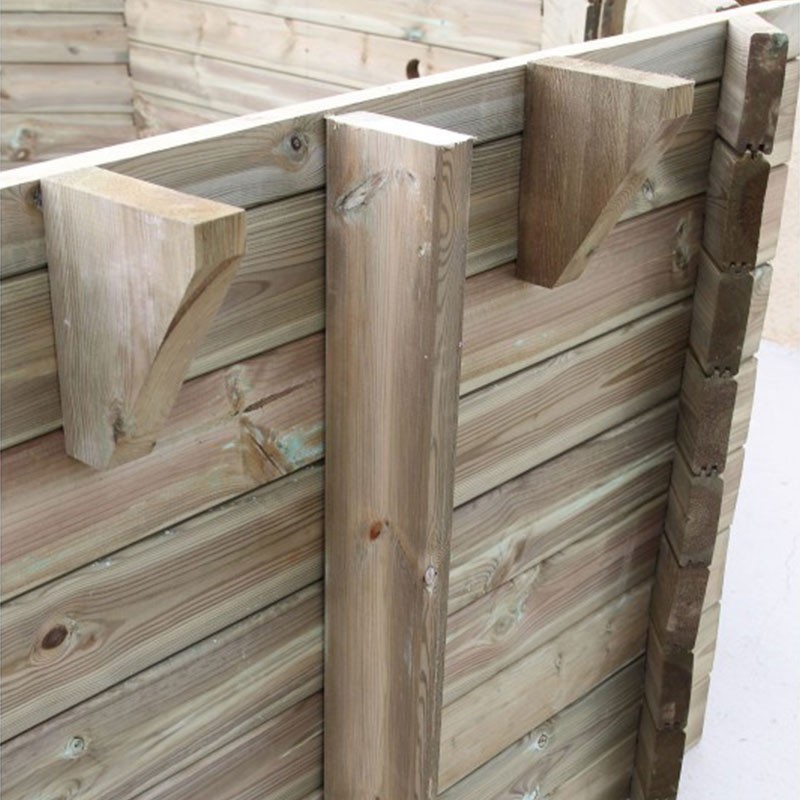

The Azura 400x750x130cm wooden pool is designed with sturdy 45mm thick planks and solid lateral reinforcements. The double coping is made of 27mm northern fir.

The concrete slab of the Azura 400x750x130cm pool must be 33m² with a minimum thickness of 20cm.

This complete kit includes :

  • Sand filter D500 - 9m³/h (sand supplied)
  • Poolmax TP75 pump

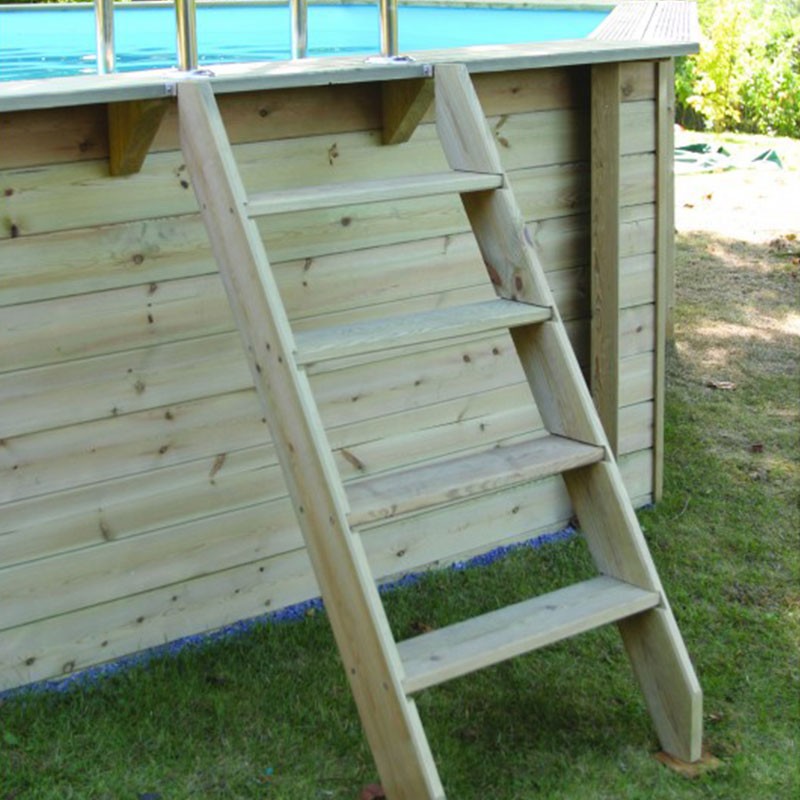

  • 4 steps removable wooden ladder (child safety)

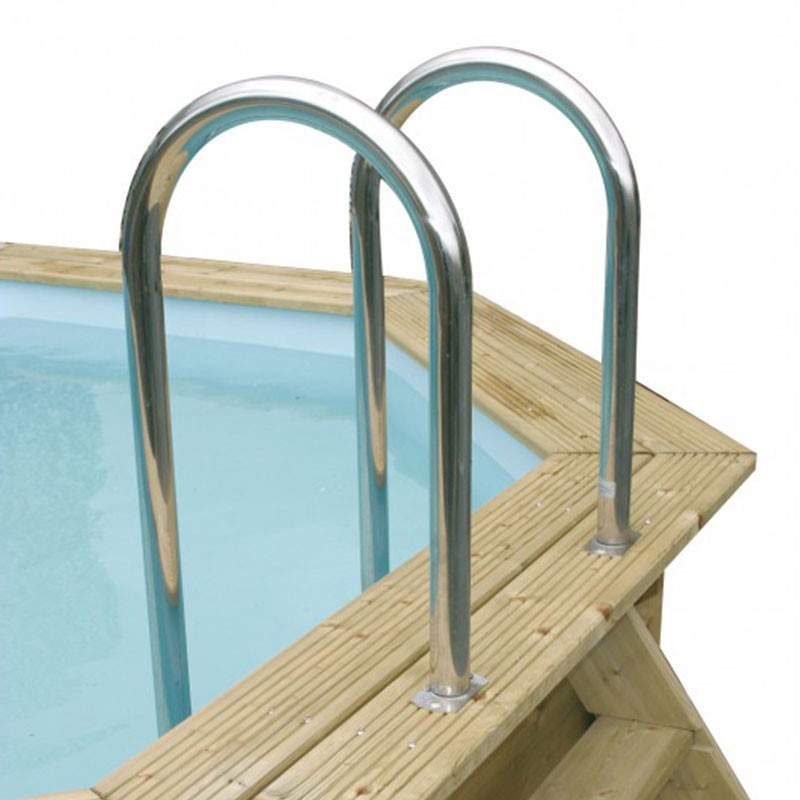

  • Interior ladder 3 steps in stainless steel
  • A beige liner 75/100th.
  • Anti-bacterial bottom felt 200g /m²
  • 8m of 38mm hose, skimmer with large mouth for optimal filtration

Filtration set: Sand filter with multiway valve (TOP version)

  • Filter :
    • Outside diameter: 500 mm (19")
    • Filter surface: 0,185m² (0,875 sq. ft.)
    • Max. flow rate 17m³/h max
    • System pressure: max. 3,5 bar
    • Filtration efficiency: 26 µm
    • Retention capacity: 231g
  • Silica sand filter :
    • Max. filling: max. max. 2/3 of the tank / max. 50kg
    • Sand grain (EN 12904:2005): 0.40 - 1.25 mm (TEN 0.65)
  • Multi-way valve (TOP):
    • Connections: 1 ½"
    • Functions: Closed / Filtration / Rinsing / Washing / Circulation / Draining / Winter

Filter set pump

  • Model: Poolmax TP75
  • Nominal voltage/frequency: 230 VAC / 50 Hz,
  • Rated power: 0.75 HP / 0.56 kW
  • Flow rate of the filter unit: 9m³/h
  • Socket: with 10mA short-circuit current protection switch (DDR), IP54
  • Protection class: I
  • Type of protection: IPX5
  • Safety marks: CE LVD, CE EMC, TUV GS

Download the brochure

download the manual

You will like also

Technical sheet

  • Swim area (m²)
    22.5
  • Structural warranty
    10
  • Liner warranty
    2
  • Pool accessories warranty
    2
  • _Promo_
    FD10
  • Discount in %
    Jusqu'à -10%
  • Exclusion discount
    yes
  • Product type
    Swimming pool
  • _MP_
    X
  • Marque
    Ubbink
    Ubbink
