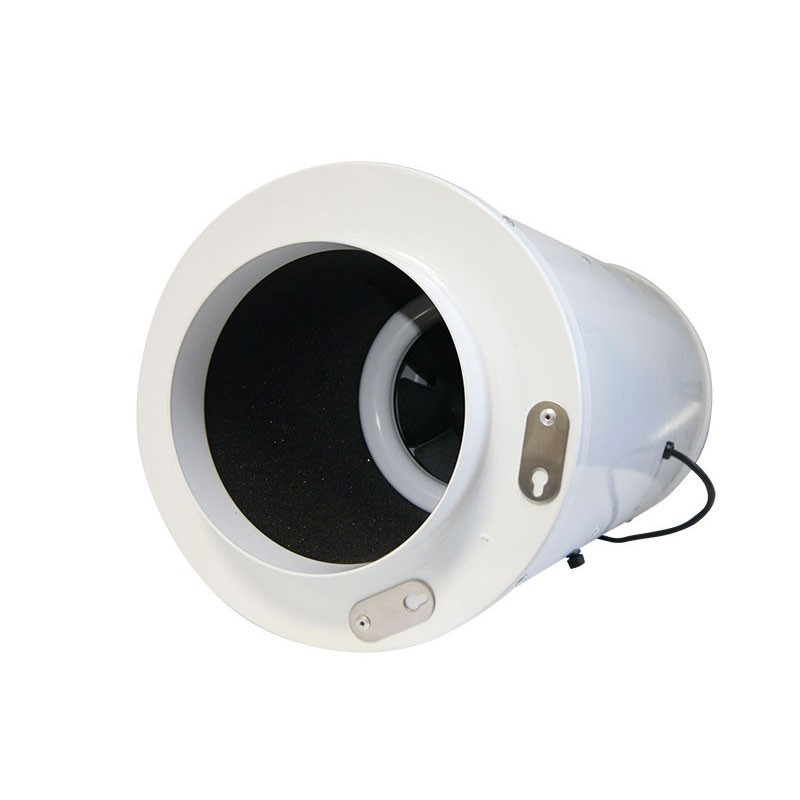

Bullmax - Silent air extractor V2 - 150mm - 594m³/h - Inline EC Fan [refurbished] !

Silent Bullmax extractor with special controller connection

BULLMAX Inline EC Fan is the silent version of our mixed-flow EC fan Bullfan . Built with a 15cm inline fan sharing the same features as the standard model. The model is built with a cold-rolled steel casing and aluminum flanges. The fan is attached to the body with long-life piano springs, making the unit more stable and vibration-free.

Take control of your air system with the special controller connection.
Allows you to manage temperature and 4 fans.

Bullgenius controller

information :

• Specific connection for controller
• ECO flame-retardant acoustic cotton.
• Detachable speed variator 0% -100% (potentiometer) included - switch (optional)
• Heavy-duty double ball bearing NMB.
• Locked motor protection (AUTOMATIC RESTART) :
• Soft-start motor
• Customized function for interlock and overvoltage protection
• Pulse-width modulation (PWM)
• 0-10 V control
• Voltage output
• Tachogenerator output (frequency

Technical specifications :

• Dimensions: 547 (W) x 243 (H) mm
• ø flange: 150 mm
• Rated voltage: 110V~120V | 220~240V
• Max. power C: 40W
• Frequency: 50 Hz - 60 Hz
• Max. speed: 5000 RPM
• Max. air flow: 350 CFM - 594 m³/H
• Static pressure: 51 mm H²O - 50 Pa
• Noise level : 50 dBA
• Motor type : EC motor
• Net weight: 5 kg
• IP rating: IPX4
