Winflex - Extractor box 2500m³/h 2xØ250mm -250mm soundproof Softbox
- -20%
Winflex Ventilation
Reference : 013-006-0502

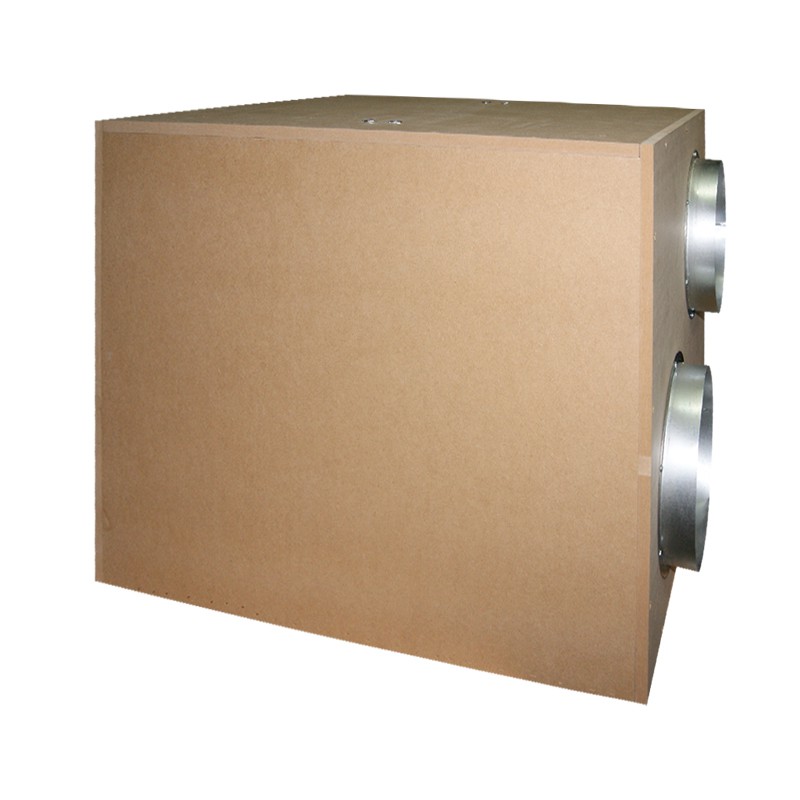

Winflex - Extractor box 2500m³/h 2xØ250mm -250mm soundproof Softbox
Soundproof box with suspended motor and foam-covered interior
Free delivery from €89.00 of purchases in France métropolitaine*
Included in immediate discounts and loyalty
> Voir le détail
| -20% | €304.00 |
| -15% | €323.00 |
| -10% | €342.00 |
| -7.5% | €351.50 |
| -5% | €361.00 |
Product details
WINFLEX SOFTBOX 2500M³/H

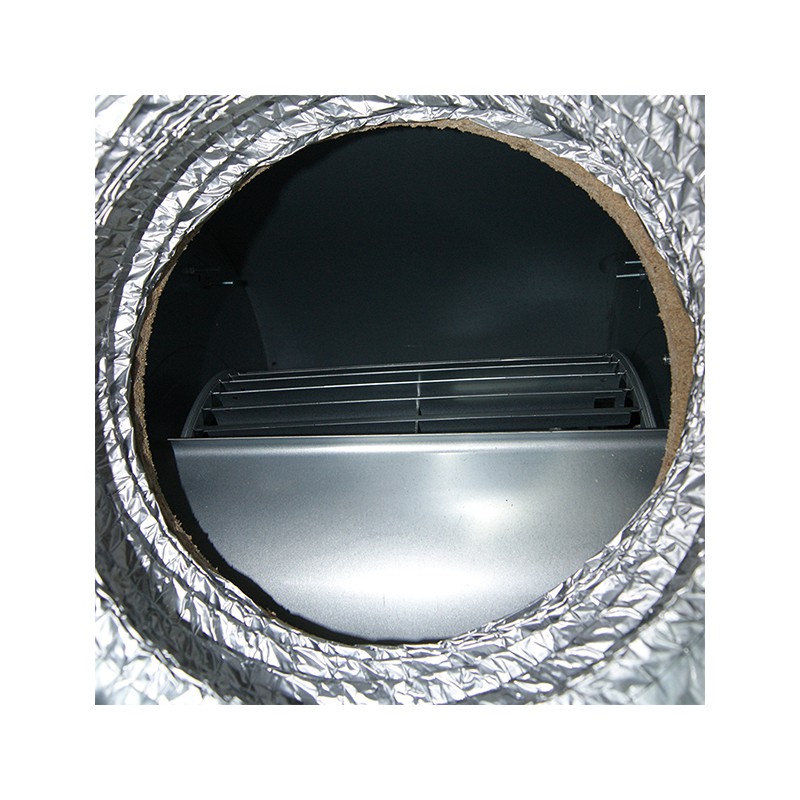

This soundproof wooden box for air extractors is extremely quiet, thanks to its foam-covered interior, which absorbs motor noise. The motor is suspended inside by supports, reducing noise and vibrations from your fan-extractors as much as possible.
Features :
- Sound-absorbing foam
- Suspended motor
- Mains power cable included
- Sheath not included
- Current (max / min): 2.63A / 1.65A
- Power (max / min): 237W / 150W
- Noise level = 31.9 dB

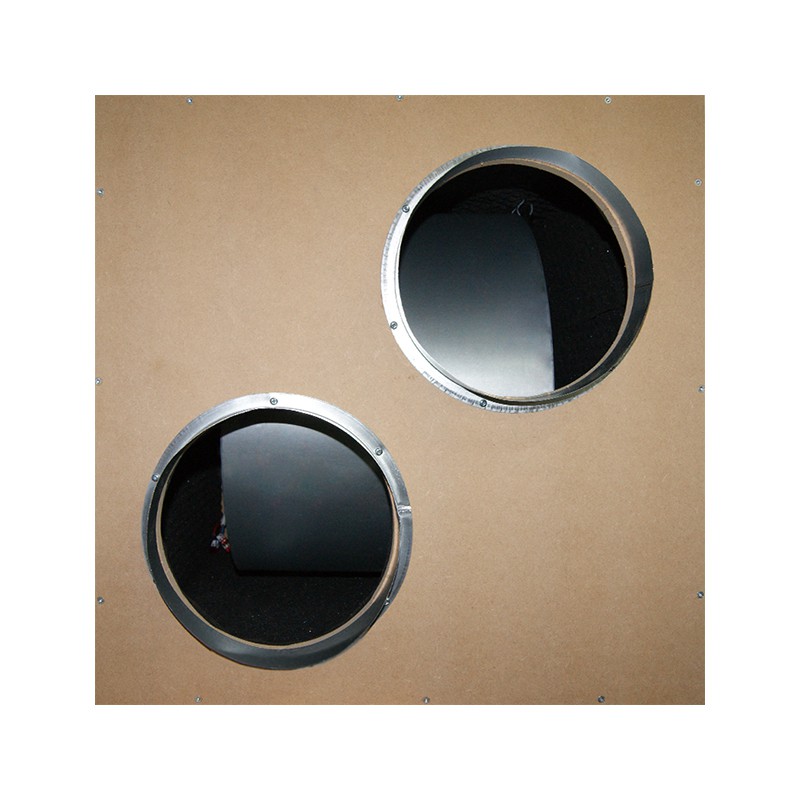

- Input: 2 x 250 mm
- Output: 1 x 250 mm
Technical data :
Softbox range from Winflex Ventilation :
| Capacity (m³) | Dimensions (cm) | Inlet (cm) | Outlet (cm) | Weight (kg) |
| 250 m³ | 40 x 40 x 50 | 125 | 125 | 9,6 |
| 550 m³ | 40 x 40 x 50 | 160 | 160 | 9,8 |
| 750 m³ | 40 x 40 x 50 | 200 | 200 | 9,9 |
| 1200 m³ | 48 x 48 x 60 | 250 | 250 | 18,8 |
| 1500 m³ | 48 x 48 x 60 | 250 | 250 | 19 |
| 2000 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 28 |
| 2500 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 28,6 |
| 3250 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 28,6 |
| 4250 m³ | 60 x 60 x 75 | 2 x 250 | 315 | 31,5 |
| 5000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 38,3 |
| 6000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 40,8 |
| 7000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 40,8 |
Winflex SoftBox = Air Box One + SonoBox from Winflex!
You will like also
- -20%
Bullfan - Bull Box Soft - 2500m³/h - 1x315 / 1x315
€500.00
€400.00
- -20%
- -20%
- -20%
Winflex- Extractor box 5000m³/h 250mm soundproof Softbox
€750.00
€600.00
- -20%
- -20%
Second hand - SONOBOX WOOD 35X35CM 550 M³/H IN/OUT 160MM
€132.00
€105.60
- -20%

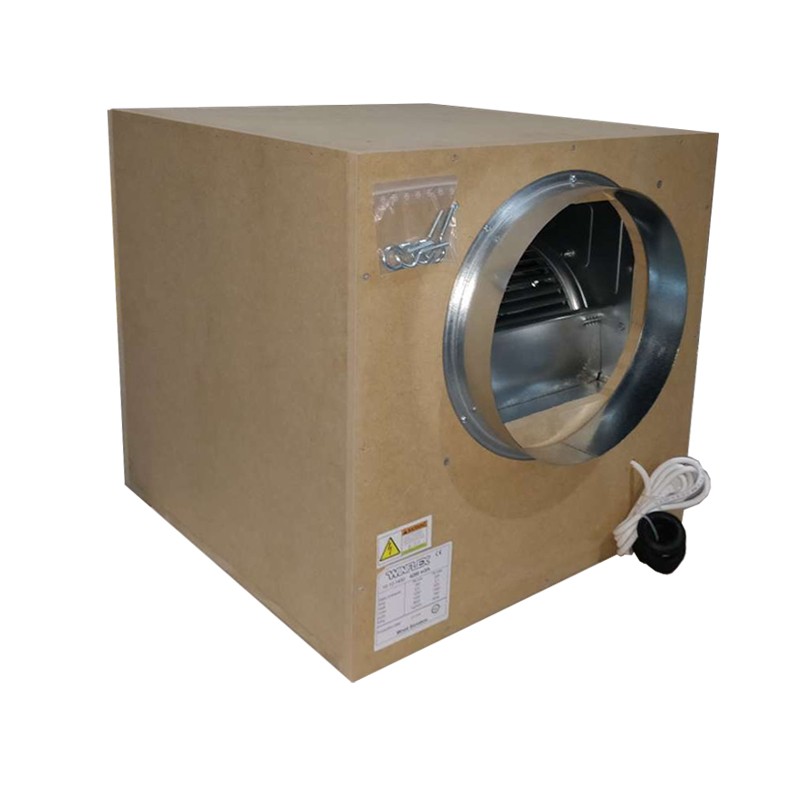

Winflex - Extractor box 4250m³/h 250mm soundproof Softbox
