Discover the soundproofed and silent MDF wood box integrating a high-power 7000m3/h air extractor. A comfort product for extreme silence! Cabinet dimensions: 650x650x650mm 2x250mm inlet and 315mm outlet, very sturdy. Delivered complete, ready to plug in. Plug and play too easy
| -20% | €512.00 |
| -15% | €544.00 |
| -10% | €576.00 |
| -7.5% | €592.00 |
| -5% | €608.00 |

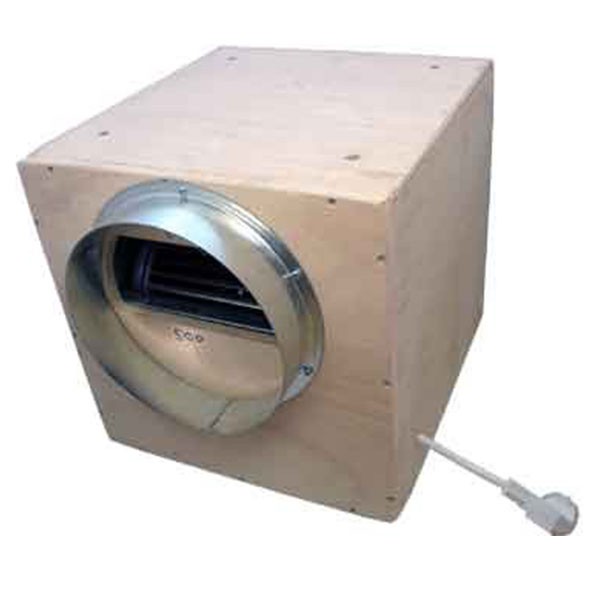

THE ultra-quiet soundproof box by Winflex Ventilation.
A comfort product for extreme silence!
Housing dimensions: 650x650x650mm
S-wind motor: 7000m³/h
Inlet / outlet: flange 250 mm x 2 (inlet) - flange 315 mm (outlet)

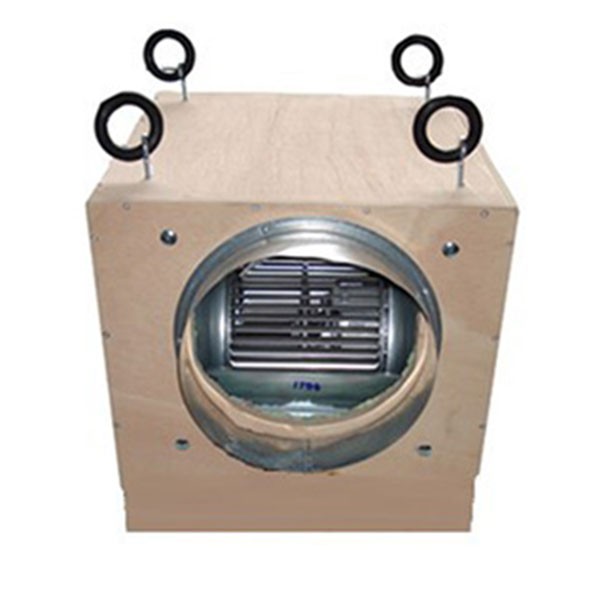

Supplied with anti-vibration suspension rings.
Delivered complete and ready to plug in.
2-year warranty.
Noise level: 56.1dB
Housing: 650 mm
Current (max / min):11.5A / 7.4A
Power (max / min): 2250W / 1000W
Load diagram :
| Power (m³) | Dimensions (cm) | Inlet (cm) | Outlet (cm) | Weight (kg) |
| 250 m³ | 40 x 40 x 50 | 125 | 125 | 8,6 |
| 550 m³ | 40 x 40 x 50 | 160 | 160 | 8,8 |
| 750 m³ | 40 x 40 x 50 | 200 | 200 | 8,9 |
| 1200 m³ | 48 x 48 x 60 | 250 | 250 | 17,8 |
| 1500 m³ | 48 x 48 x 60 | 250 | 250 | 18 |
| 2000 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 27 |
| 2500 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 27,6 |
| 3250 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 27,6 |
| 4250 m³ | 60 x 60 x 75 | 2 x 250 | 315 | 30,5 |
| 5000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 37,3 |
| 6000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 39,8 |
| 7000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 39,8 |
