Winflex Ventilation
Reference : 013-006-049

Winflex - Air extractor box 4250m³/h 315mm silent Sono-Box Wood S-vent

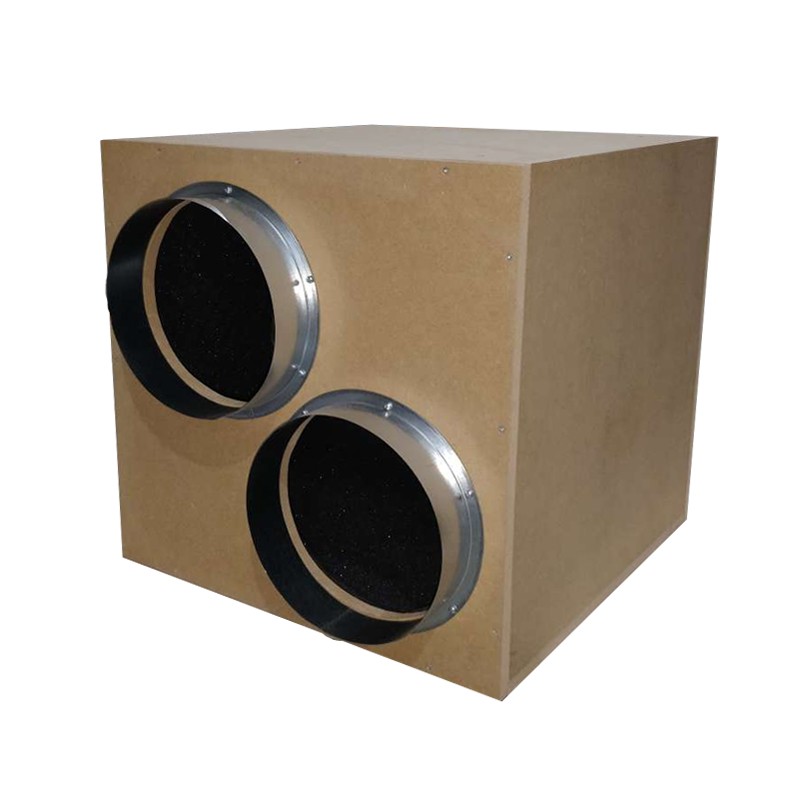

discover the sono-box ultra quiet air extractors of 4250m3/H in the form of soundproof MDF wooden boxes with 2 inlets of diameter 250mm and an outlet of 315mm adapted to the various flexible ducts and ventilation ducts. adapted for an industrial ventilation with an ultra powerful and silent motor.

> Détails du produit
Winflex - Air extractor box 4250m³/h 315mm silent Sono-Box Wood S-vent
€520.00 (tax incl.)
€650.00
In stock
Free delivery from €89.00 of purchases in France métropolitaine*
Included in immediate discounts and loyalty
> Voir le détail
-20% €416.00
-15% €442.00
-10% €468.00
-7.5% €481.00
-5% €494.00
> More info here

Frequently bought together

Product details

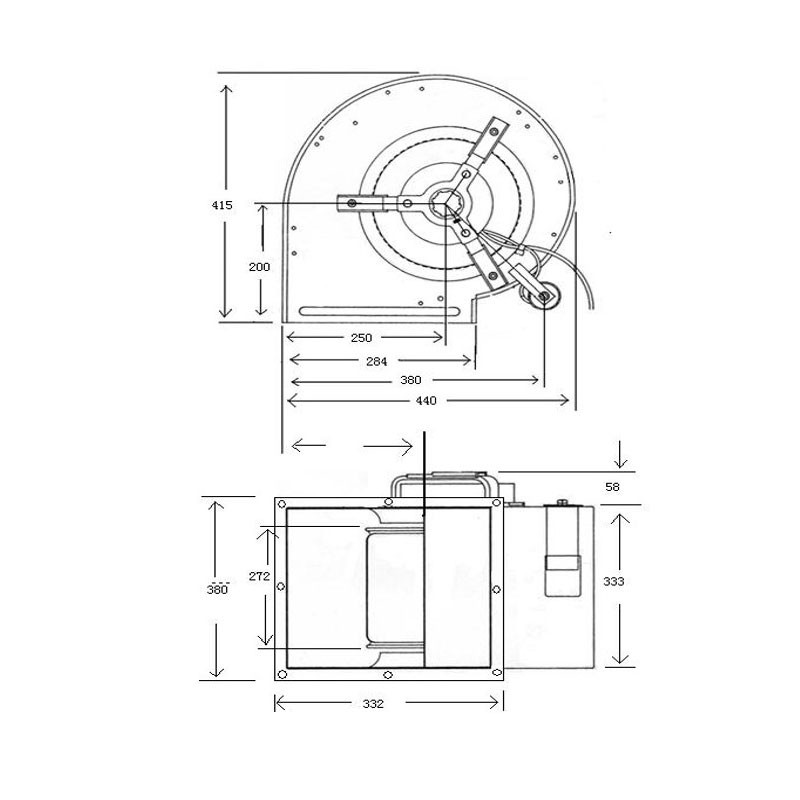

Dimensions: 65x65cm.

Power: 4250m³/H.

Wooden design: quieter than the metal versions.

Very well soundproofed.

Guarantee : 1 year.

Sound level: 45.2dB

inlet diameter: 2x250mm

output diameter: 315mm

Casing: 550 mm

Current (max/min) : 5.9A / 2.7A

Power (max/min) : 1250W / 525W

delivered complete, mounted and connected to 220v power supply

1 year warranty

montage caisson extracteur d'air

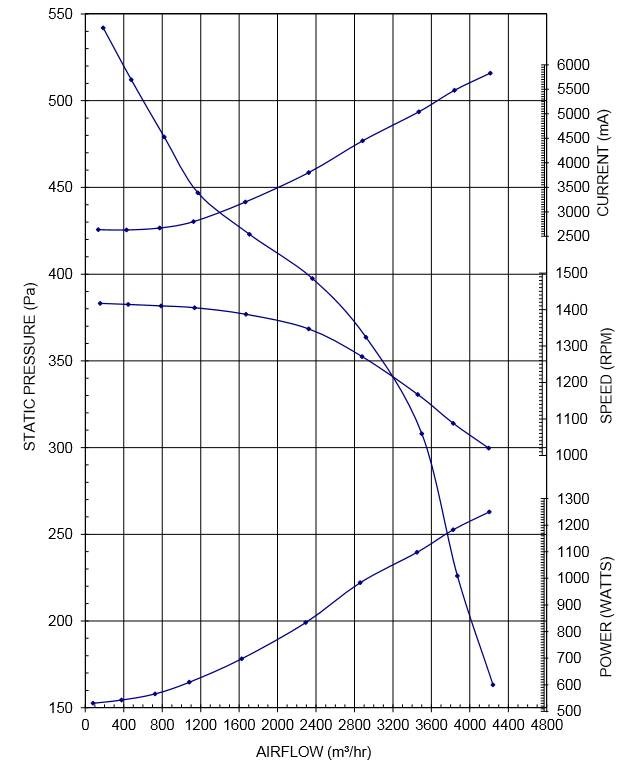

Load diagram :

You will like also

Technical sheet

  • _Promo_
    FD15
  • Discount in %
    -20%
  • Air flow
    1501 to 7000 m3/h
  • Inlet diameter
    250
  • Output diameter
    315
  • Product type
    Extractor housing
  • _MP_
    X
  • Eco-participation in €uros
    5
  • _VOL_
    X
  • Marque
    Winflex Ventilation
    Winflex Ventilation
