Winflex - Air extractor box 5050m³/h 250mm soundproof Sono-Box Bois S-vent
Winflex Ventilation
Reference : 013-006-0491
Winflex - Air extractor box 5050m³/h 250mm soundproof Sono-Box Bois S-vent
A product of comfort allowing to obtain an extreme silence !!! Cabinet dimensions :
Free delivery from €89.00 of purchases in France métropolitaine*
Included in immediate discounts and loyalty
> Voir le détail
| -20% | €560.00 |
| -15% | €595.00 |
| -10% | €630.00 |
| -7.5% | €647.50 |
| -5% | €665.00 |
Product details
THE ultra-quiet soundproof box by Winflex Ventilation.
A comfort product for extreme silence!

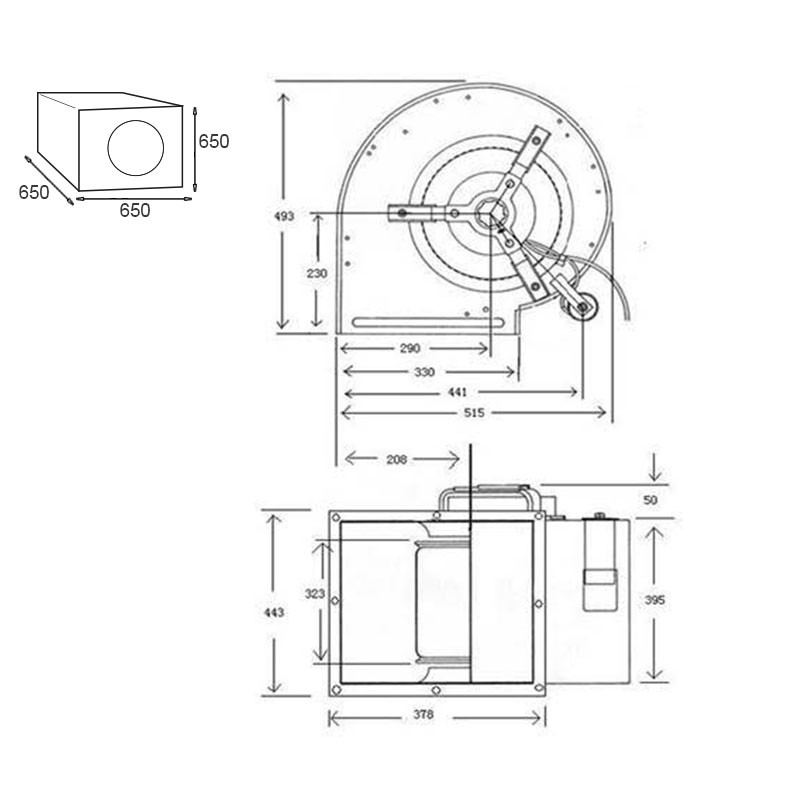

Housing dimensions: 650 x 650 mm
Motor: 5050m³/h
Inlet / outlet: flange 250 mm x 2 (inlet) - flange 400 mm (outlet)
Supplied with anti-vibration suspension rings.
Delivered complete and ready to plug in.
2-year warranty.
Noise level: 49.9dB
Housing: 650 mm
Current (max / min): 8A / 3A
Power (max / min): 1150W / 690W
Load diagram :
| Power (m³) | Dimensions (cm) | Inlet (cm) | Outlet (cm) | Weight (kg) |
| 250 m³ | 40 x 40 x 50 | 125 | 125 | 8,6 |
| 550 m³ | 40 x 40 x 50 | 160 | 160 | 8,8 |
| 750 m³ | 40 x 40 x 50 | 200 | 200 | 8,9 |
| 1200 m³ | 48 x 48 x 60 | 250 | 250 | 17,8 |
| 1500 m³ | 48 x 48 x 60 | 250 | 250 | 18 |
| 2000 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 27 |
| 2500 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 27,6 |
| 3250 m³ | 55 x 55 x 68 | 2 x 250 | 315 | 27,6 |
| 4250 m³ | 60 x 60 x 75 | 2 x 250 | 315 | 30,5 |
| 5000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 37,3 |
| 6000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 39,8 |
| 7000 m³ | 64 x 64 x 81 | 2 x 250 | 315 | 39,8 |
You will like also
Technical sheet
- _Promo_FD15Discount in %-30%Air flow1501 to 7000 m3/hInlet diameter250Output diameter400Product typeExtractor housing_MP_XEco-participation in €uros5_VOL_XMarqueNos emballages et produits peuvent faire l’objet d’une consigne de tri
