ThinkGrow LED - Bar LED Model One - TLB-1 120cm - 4 channels

TLB-1 ThinkGrow - Bar LED 4 Spectral Channels for Model One System

The ThinkGrow Model One is an innovative lighting system designed to meet the needs of growers at all stages of plant growth. Thanks to its modularity, it allows total customization without the need for complex installation.

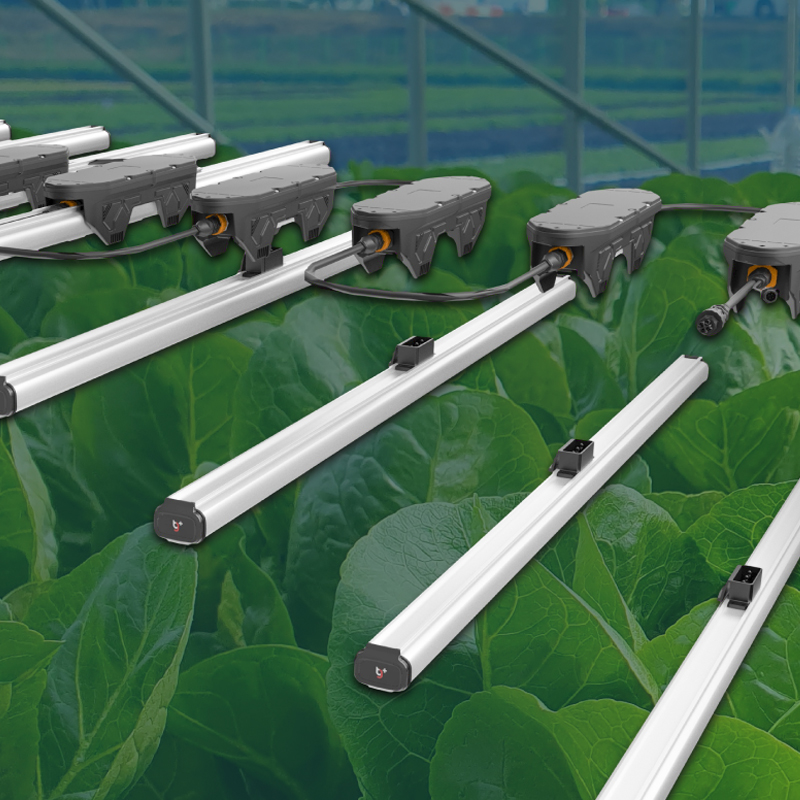

ThinkGrow's TLB-1 is a lighting bar LED advanced 120 cm horticultural bar, designed to complement the Model One LED System. Equipped with four independent spectral channels (white, deep red, far red and UV), it enables precise, fully customizable light reproduction through connection with the TrolMaster controller.

With 90W of power and a luminous flux of over 252 µmol/s, the TLB-1 provides high-performance lighting, ideal for the entire growing cycle. It enables thelight spectrum to be adapted to the needs of plants at each phase, from cutting to flowering, and simulates natural sunlight as closely as possible.

Technical specifications:

• Length: 120 cm (45.35")
• Width: 6.8 cm (2.68")
• Height: 5.6 cm (2.20")
• Weight: 1 kg
• Power: 90W
• PPF: >243 µmol/s
• Recommended installation height: >15.2 cm above canopy
• Service life: L90 > 54,000 hours
• Operating temperature: 0-40°C (32-104°F)
• Operating humidity: 5~95% RH
• Warranty: 5 years

The TLB-1 is the ideal choice for demanding growers looking for spectral flexibility and maximum performance in their indoor cultivation.

Key benefits of the Model One System:

• Total customization: You can adjust the lightbars, brackets and connecting cables to suit the needs of your plants.

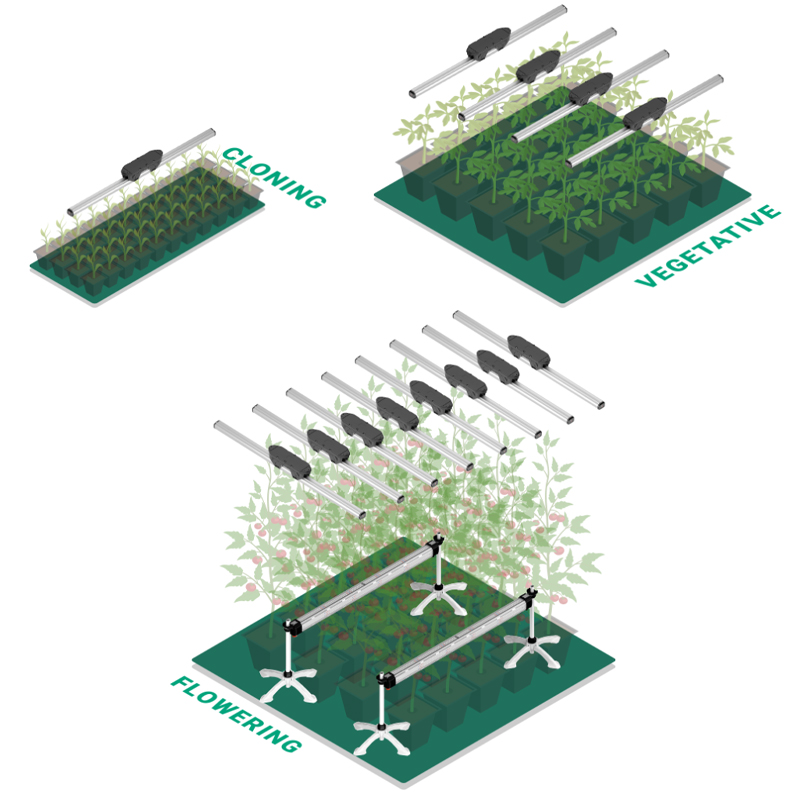

• Adaptability to every stage of growth: Whether for seedlings or clones, the system allows you to add or remove elements to optimize light.

• Advanced control: Compatible with TrolMaster, it offers settings such as spectrum control and optimal light distribution.

• Two lengths available: Available in 4' and 5' to suit the size of your growing space.

• Light quality LED equipped with SAMSUNG full-spectrum diodes, specially designed for horticulture.

• Optimized power supply: TLD-2 and TLD-4 drivers control the light spectrum and improve productivity.

This system is ideal for growers who want maximum flexibility and precise controlcis control over crop lighting.

FAQ - ThinkGrow TLB-1 LED

What spectral channels are included in the TLB-1?

• The TLB-1 has four distinct spectral channels: white light, deep red, far red and ultraviolet.

Do I need a controller to use the TLB-1?

• To access advanced features such as separate spectral channel control, you need to connect the TLB-1 to a compatible TrolMaster controller.

How powerful is the bar? LED TLB-1?

• The TLB-1 delivers 90W of power at a PPF of over 243 µmol/s.

What is the estimated service life of the TLB-1?

• Its service life is in excess of 54,000 hours (L90), guaranteeing stable performance over time.

Is it compatible with all ThinkGrow systems?

• It is specifically designed for the ThinkGrow Model One system.

What is the recommended installation height?

• We recommend installing the TLB-1 more than 15.2 cm above the plant canopy.

Can several TLB-1 bars be combined?

• Yes, they can be combined to form a lighting matrix tailored to the size of your growing space.
