Ubbink
Reference : 215-630-034

Ubbink - Piscine Linéa 350x650x140cm - grey liner

The Linéa rectangular pool 350x650x140cm will easily accommodate your family or friends on hot summer days.

> Détails du produit
Ubbink - Piscine Linéa 350x650x140cm - grey liner
€8,074.05 (tax incl.)
€8,499.00
Free delivery from €89.00 of purchases in France métropolitaine*

Delivery delay : 4 week(s)

Not included in immediate discounts and loyalty
> Voir le détail

Frequently bought together

Product details

Discover the robustness and elegance of pools Ubbink :

The manufacturer's pools Ubbink are offered at a very attractive price while maintaining an impeccable quality!

With a size of 350x650x140cm, it can easily accommodate your friends and family during the hot summer days.

The pools Ubbink can be placed on a concrete slab, totally above ground, semi-buried or buried.

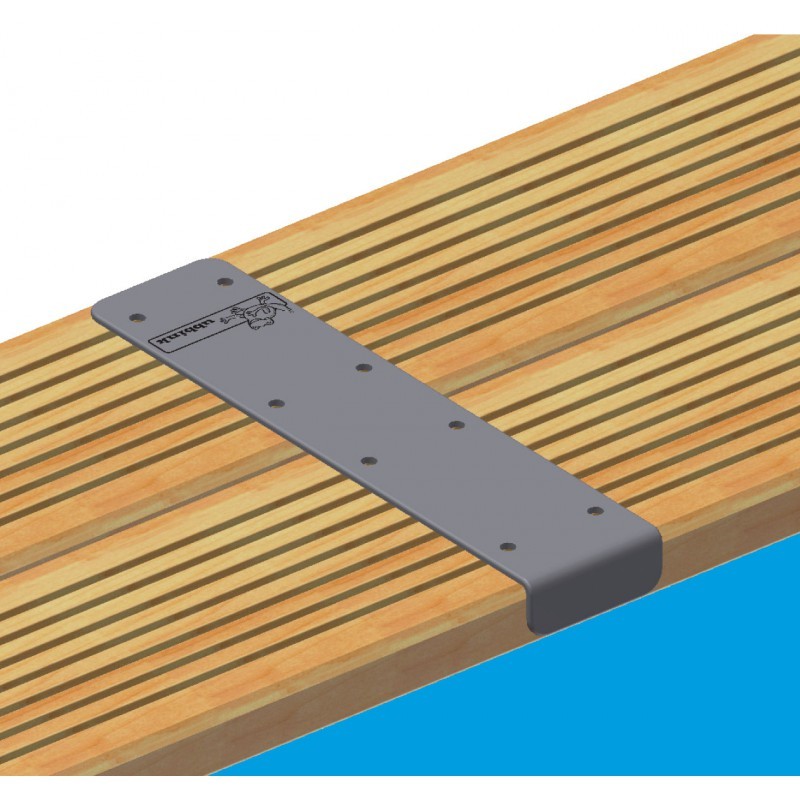

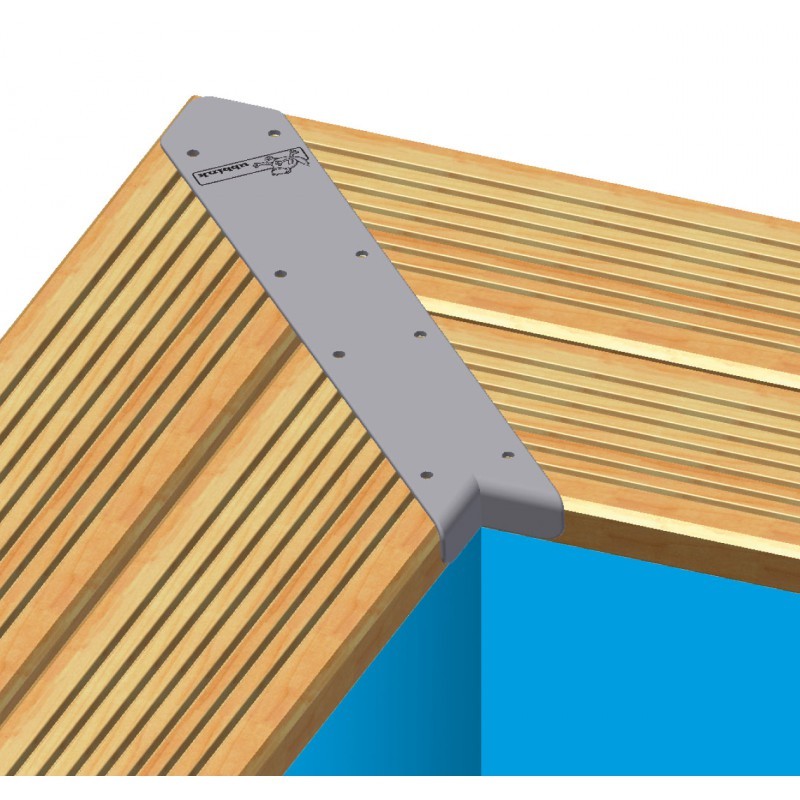

The wooden pool Linéa 350x650x140cm is designed with robust 45mm thick planks and solid metal cradles. The double coping is made of 27mm northern fir.

The concrete slab of the Linéa 350x650x140cm pool must be 33.8m² with a minimum thickness of 20cm.

This complete kit includes :

  • Sand filter D500 - 9m³/h (sand supplied)
  • Poolmax TP75 pump

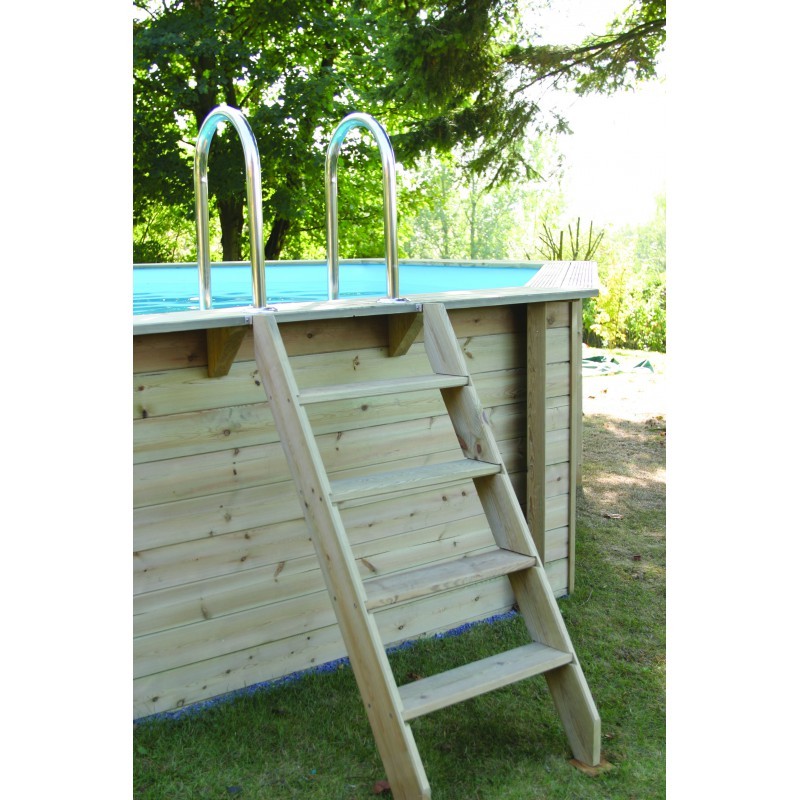

  • 4 steps removable wooden ladder (child safety)

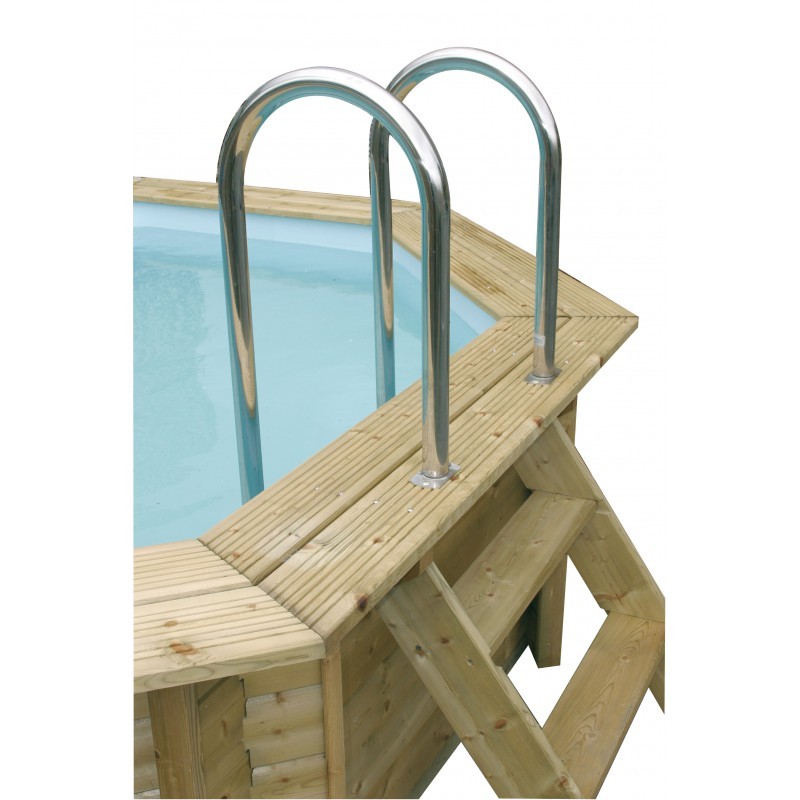

  • Interior ladder with 3 stainless steel steps
  • A grey liner 75/100th
  • Anti-bacterial bottom felt 200g/m²
  • Felt for the walls 170g/m²
  • Rigid PVC outlets and 25m of pipe ø5cm

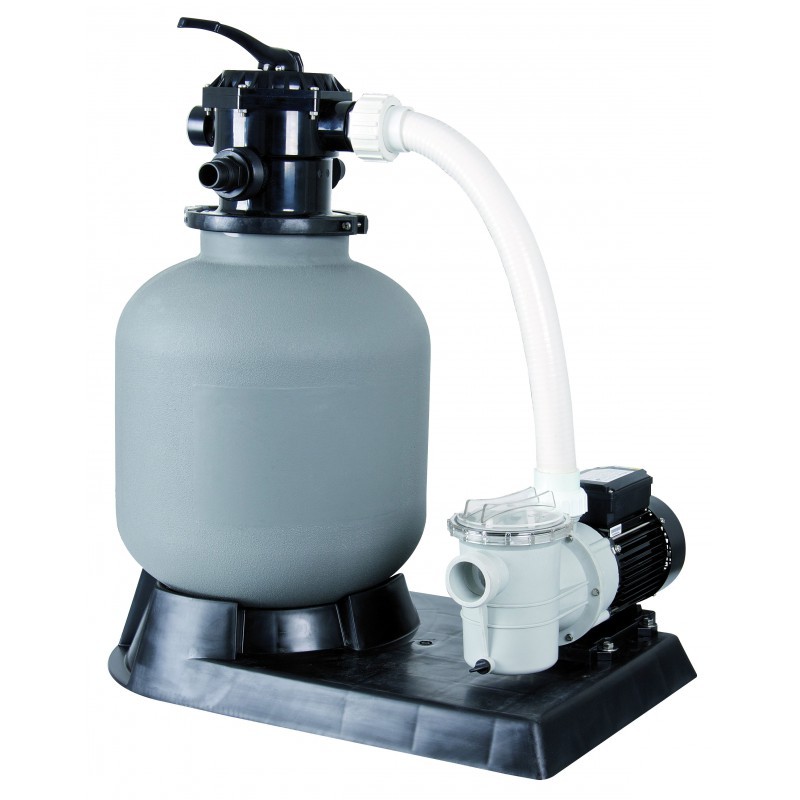

Filtration set: Sand filter with multiway valve (TOP version)

  • Filter :
    • Outside diameter: 500 mm (19")
    • Filter surface: 0,185m² (0,675 sq. ft.)
    • Max. flow rate 17m³/h max
    • System pressure: max. 3,5 bar
    • Filtration efficiency: 26 µm
    • Retention capacity: 231g
  • Silica sand filter :
    • Max. filling: max. max. 2/3 of the tank / max. 75kg
    • Sand grain (EN 12904:2005): 0.40 - 1.25 mm (TEN 0.65)
  • Multi-way valve (TOP):
    • Connections: 1 ½"
    • Functions: Closed / Filtration / Rinsing / Washing / Circulation / Draining / Winter

Filter set pump

  • Model: Poolmax TP75
  • Nominal voltage/frequency: 230 VAC / 50 Hz,
  • Rated power: 0.75 HP / 0.56 kW
  • Flow rate of the filter unit: 9m³/h
  • Socket: with 10mA short-circuit current protection switch (DDR), IP54
  • Protection class: I
  • Type of protection: IPX5
  • Safety marks: CE LVD, CE EMC, TUV GS

Download the brochure


Download the manual

You will like also

Technical sheet

  • Swim area (m²)
    18
  • Structural warranty
    10
  • Liner warranty
    2
  • Pool accessories warranty
    2
  • _Promo_
    FD10
  • Discount in %
    Jusqu'à -10%
  • Exclusion discount
    yes
  • Color
    Grey
  • Product type
    Swimming pool
  • _MP_
    X
  • Marque
    Ubbink
    Ubbink
