Aero-fan - Inline extractor V-6 - 150mm - 610m3/H
Aero-Fan
Reference : 013-796-002
Aero-fan - Inline extractor V-6 - 150mm - 610m3/H
The products Aero-Fan products are fully compatible with the control system from Trolmaster. Thanks to this integration, you benefit from automatic ventilation control according to your needs: temperature, humidity, negative pressure, air renewal, etc.
Free delivery from €89.00 of purchases in France métropolitaine*
Delivery delay : 10 day(s)
Included in immediate discounts and loyalty
> Voir le détail
| -20% | €187.60 |
| -15% | €199.33 |
| -10% | €211.05 |
| -7.5% | €216.91 |
| -5% | €222.78 |
Frequently bought together
-
Your product
Product details
Inline extractor Aero-Fan V-6 - 150 mm - 610 m³/h: compact, powerful and TrolMaster-compatible
The extractor Aero- Fan V-6 is a compact 150 mm (6") inline fan specially designed to improve air circulation and quality in confined spaces such as indoor grow rooms. Thanks to its 66 W motor and 8 blades, it delivers a powerful 360 CFM (approx. 610 m³/h), while remaining energy-efficient.
Its durable housing, included mounting plate and compatibility with TrolMaster controllers make it an ideal choice for growers wishing to automate and optimize their growing environment. This compact model is perfectly suited to small and medium-sized spaces.
Technical specifications
- Inlet/outlet diameter: 150 mm (6")
- Maximum airflow: 360 CFM ≈ 610 m³/h
- Operating voltage: 100-277 VAC, 50/60 Hz (automatic detection)
- Maximum power: 66 W
- Maximum current: 1.0 A
- Number of blades: 8
- Maximum static pressure: 459 Pa
- Protection rating: IP44 (dust and moisture resistant)
- Operating temperature : -20 to +60°C
- Estimated service life (MTTF): 50,000 hours (at 25°C)
- Motor rotation: counterclockwise (CCW)

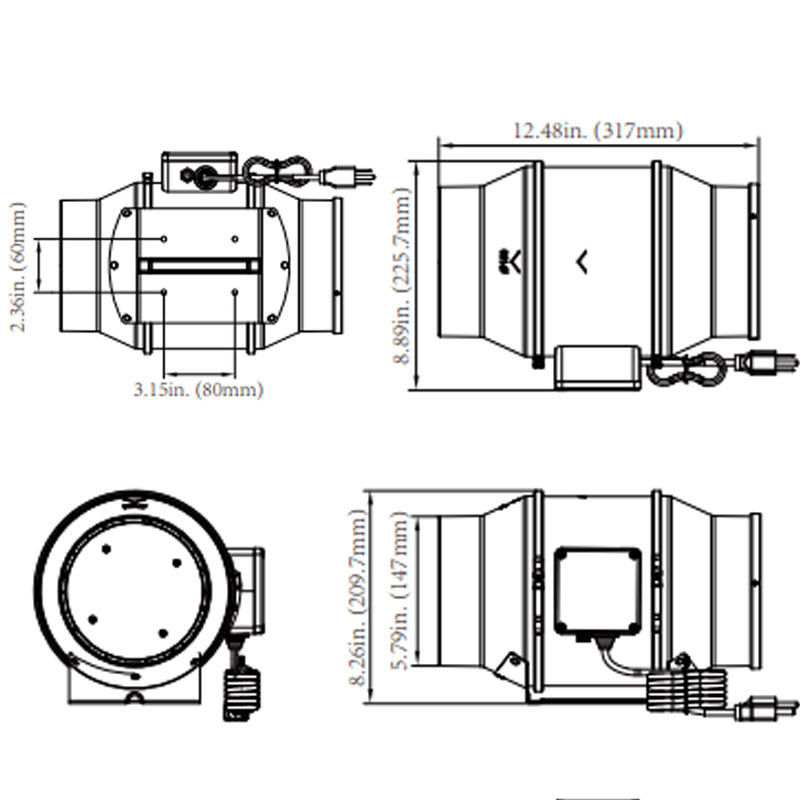

- Dimensions: 31.7 x 22.6 x 14.7 cm
- Net weight: 2.03 kg
Package contents
- 1 x Extractor Aero-Fan V-6 - 150 mm
- 1 x Mounting plate
- 1 x Operating instructions
Frequently asked questions (FAQ)
Is it compatible with automated systems?
- Yes, the V-6 is fully compatible with TrolMaster controllers, allowing you to automatically regulate temperature, humidity or CO₂ according to the needs of your crop.
What type of crop is suitable for this model?
- With a flow rate of 610 m³/h, this model is recommended for small to medium-sized grow rooms, flowering boxes or partitioned growing spaces.
Is it easy to install?
- Yes. Thanks to the supplied mounting plate, installation of this fan in a duct or wall is quick and easy, even for beginners.
Is it a noisy model?
- The V-6 is designed to be quiet and stable. However, like all extractors, it generates a slight flow noise, which can be reduced with a silencer.
How long does it last?
- The motor is designed for exceptional longevity, with an estimated average life of 50,000 hours at ambient temperature.
