Aero-Fan - V-8 inline extractor - 200mm - 1160m3/H

Inline extractor Aero-Fan V-8 - 200 mm - 1160 m³/h: Compact, high-performance ventilation for indoor cultivation

The inline fan Aero- Fan V-8 is a compact 200 mm (8") air extractor designed to optimize air circulation in enclosed environments such as indoor cultivation areas. Featuring a powerful motor and 10 blades, it offers a high airflow of 684 CFM (≈ 1160 m³/h), effectively removing stale air and humidity.

Thanks to its lightweight format, included mounting plate and compatibility with controllers Trolmastercontrollers, this fan is easy to install and control cis ventilation control. It's ideal for any grower looking for reliability, performance and adaptability.

Key features

• Inlet/outlet diameter: 200 mm (8")
• Maximum air flow: 684 CFM ≈ 1160 m³/h
• Operating voltage: 100-277 VAC, 50/60 Hz (automatic detection)
• Maximum power consumption: 182 W
• Maximum current: 1.8 A
• Number of blades: 10
• Maximum static air pressure: 735 Pa
• Protection rating: IP44 (protected against splashing water and dust)
• Operating temperature : -20 to +60°C
• Mean life time (MTTF): 50,000 hours (at 25°C)

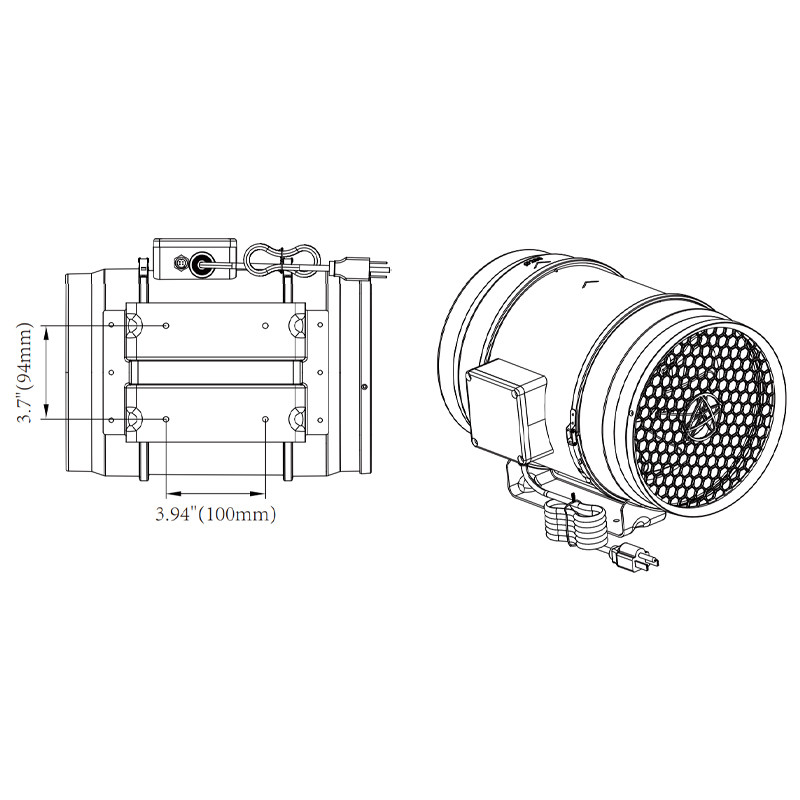

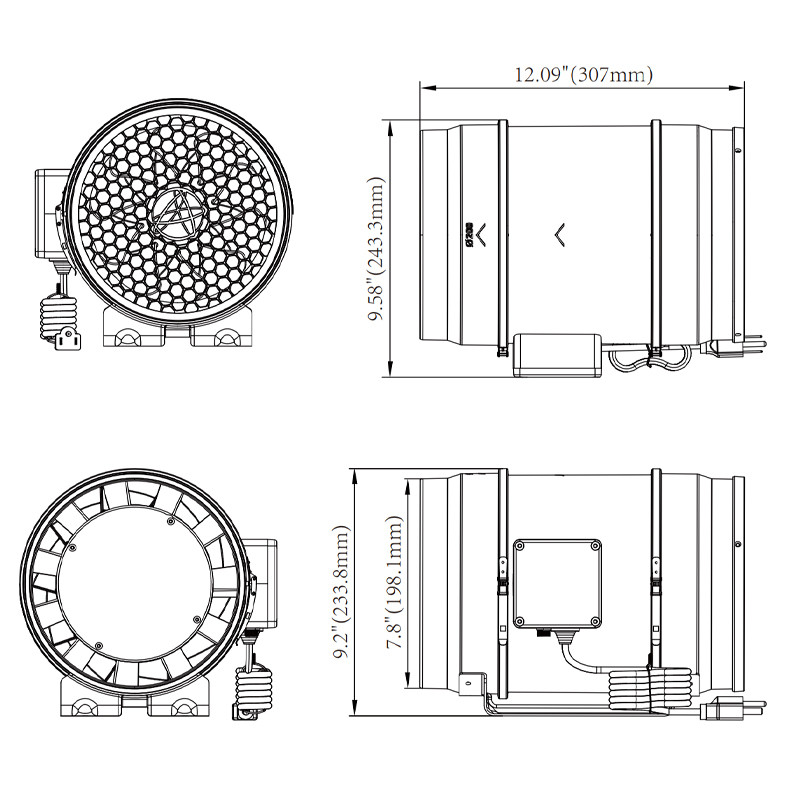

• Dimensions: 30.7 x 24.3 x 19.8 cm
• Net weight: 3.1 kg

Package contents

• 1 x Inline extractor Aero-Fan V-8 - 200 mm
• 1 x Mounting plate
• 1 x User manual

Frequently asked questions (FAQ)

Does this model work with Trolmaster ?

• Yes, this model is compatible with the following controllers Trolmaster ( Hydro-X, etc.) for automated management of ventilation according to the climatic conditions of your growing area.

Is it suitable for small growing areas?

• Absolutely. The 200 mm format is perfect for medium-sized grow rooms or indoor boxes, while offering sufficient airflow to guarantee effective extraction.

Can I regulate its speed?

• Yes, if you use a compatible controller, the speed can be automatically adjusted to maintain optimum conditions, without the need for manual intervention.

Is assembly simple?

• Yes, the extractor comes with a mounting plate for quick installation on standard ventilation ducts or wall structures.

Is it quiet?

• Thanks to its balanced design and optimized motor, this fan reduces noise pollution while maintaining excellent airflow performance.
