Aero-Fan - Inline extractor V-12 - 315mm - 2000m3/H

Inline extractor Aero-Fan V-12 - 315 mm - 2000 m³/h: powerful ventilation for demanding growing areas

The extractor Aero- Fan V-12M Pro is a high-performance inline fan designed for environments requiring high air renewal, such as large indoor grow rooms. With its 315 mm (12") diameter, robust motor and 8 blades, it generates an impressive airflow of 1180 CFM, or around 2000 m³/h, ensuring rapid extraction of humidity and odors.

This model is compatible with TrolMaster controllers for intelligent control, and comes with a mounting plate for easy installation in all types of ductwork. An ideal choice for indoor growers looking for efficiency, reliability and flexibility.

Key features

• Inlet/outlet diameter: 315 mm (12")
• Maximum airflow: 1180 CFM ≈ 2000 m³/h
• Operating voltage: 100-277 VAC, 50/60 Hz (automatic detection)
• Maximum power consumption: 268 W
• Maximum current: 2.6 A
• Number of blades: 8
• Maximum static air pressure: 779 Pa
• Protection rating: IP44 (water and dust resistant)
• Operating temperature : -20 to +60°C
• Average life (MTTF): 50,000 hours (at 25°C)

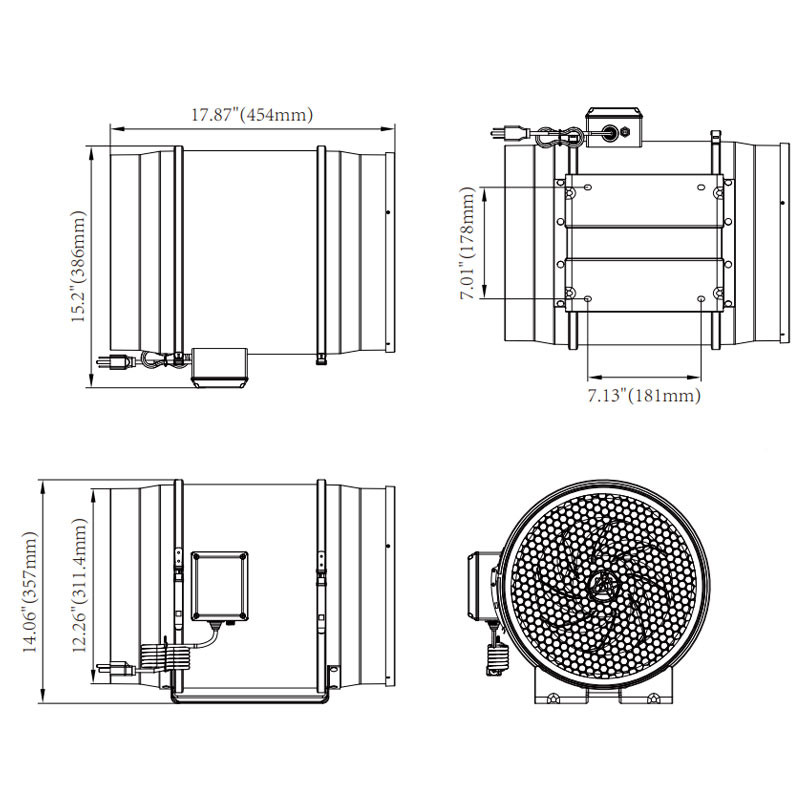

• Dimensions: 45.4 x 35.7 x 31.1 cm
• Net weight: 8.0 kg

Package contents

• 1 x Inline extractor Aero-Fan V-12 - 315 mm
• 1 x Mounting plate
• 1 x User manual

Frequently asked questions (FAQ)

Is this model compatible with TrolMaster controllers?

• Yes, the V-12 is fully compatible with TrolMaster controllers, enabling automatic, intelligent management of fan speed according to the conditions of your space.

Is it suitable for a large grow room?

• Absolutely. With a flow rate of almost 2000 m³/h, this extractor is ideal for large growing areas, where rapid air renewal is essential.

Is speed regulation possible?

• Yes, if you use a compatible controller, the speed can be regulated automatically or manually, depending on the needs of your crop.

Is it easy to install?

• The extractor is supplied with a mounting plate for quick installation on standard ducts. It can also be suspended, wall-mounted or ceiling-mounted.

How quiet is this model?

• Despite its power, the V-12 is designed to minimize vibration and noise, offering superior sound comfort to conventional extractors of the same caliber.
