Aero-Fan - Fan pro HE-20M - 50cm - 8500m3/H
Aero-Fan
Reference : 013-796-008
Aero-Fan - Fan pro HE-20M - 50cm - 8500m3/H
The products Aero-Fan products are fully compatible with the control system fromTrolmaster. Thanks to this integration, you benefit from automatic ventilation control according to your needs: temperature, humidity, negative pressure, air renewal, etc. A major asset for guaranteeing a stable climate optimized for plant growth.
Free delivery from €89.00 of purchases in France métropolitaine*
Delivery delay : 10 day(s)
Included in immediate discounts and loyalty
> Voir le détail
| -20% | €875.20 |
| -15% | €929.90 |
| -10% | €984.60 |
| -7.5% | €1,011.95 |
| -5% | €1,039.30 |
Frequently bought together
-
Your product
Product details
High-speed fan Aero-Fan Pro 50cm 8500m3/H- Maximum performance for indoor ventilation
The high-speed fan Aero- Fan Pro 20 inches (ref. HE-20M) from Trolmaster is designed to meet the demands of the most technical grow rooms. Powerful, reliable and intelligent, this ventilation system guarantees optimum air circulation and efficient climate management, thanks to its compatibility with TrolMaster controllers.
Powerful airflow and intelligent integration
With an impressive airflow of 8500m3/H and a maximum static pressure of 150 Pa, the HE-20M fan quickly eliminates humidity and pockets of stale air. Its high-performance motor automatically detects the voltage (200-277 VAC) and delivers up to 610 W of power, while remaining economical and reliable.
Robust, durable design
Equipped with 5 blades and designed to operate in extreme conditions (from -4 to 140°F), this fan has an IP54 protection rating, making it resistant to dust and water splashes. Its MTTF of 50,000 hours ensures exceptional longevity, even in continuous operation.
Package contents
- 1 x High-speed fan Aero-Fan Pro
- 1x ECS-7 Cable
Technical specifications
- Operating voltage: 200-277 VAC (automatic detection)
- Rated current: 3.0 A max.
- Input power: 610 W max.
- Number of blades: 5
- Max. air flow 4980 CFM 8500m3/H
- Max. static pressure 150 Pa
- Direction of rotation: CCW (counterclockwise)
- Operating temperature : -4 to 140 °F
- Mean life time (MTTF): 50,000 hours (at 25°C)
- Protection rating: IP54

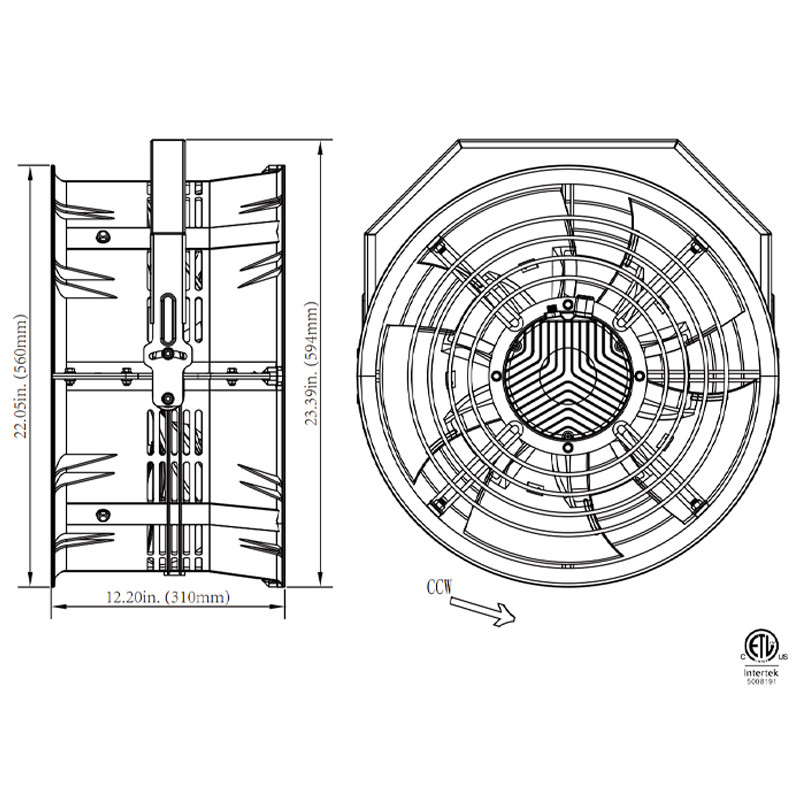

- Dimensions: 31 x 56 x 59.4 cm
- Net weight: approx. 13.5 kg
Unrivalled climate control
This Pro model is specially designed for seamless integration into control systems Trolmasterit automatically adjusts to your growing needs: extraction, circulation, temperature or humidity. Ideal for grow rooms, greenhouses or technical rooms.
Adopt the extractor Aero- Fan Pro extractor for a perfectly controlled growing environment, professional performance and remarkable longevity.
Frequently asked questions (FAQ)
- Is this fan compatible with a Trolmaster ?
Yes, the high-speed fan Aero-Fan Pro 20" high-speed fan is fully compatible with control systems Trolmastercontrol systems, including the Hydro- X. This enables intelligent climate control in your growing area.
- Is it suitable for continuous use?
Yes, thanks to its robust design, powerful motor and 50,000-hour MTTF, this fan is designed for continuous operation in the most demanding growing environments.
- Can it be installed on a duct system?
Yes, its versatile design makes it easy to install in a variety of duct systems. It is ideal for extracting or circulating air in growing boxes or chambers.
- Is it noisy?
Despite its high power output, the Aero-Fan Pro remains relatively quiet thanks to its optimized EC motor. It ensures intense air flow without disturbing the sound environment.
- How resistant is it to humidity?
This model has an IP54 protection rating, making it resistant to dust and splashes. It is therefore perfectly suited to humid indoor growing environments.
